System Operation

Horn

System Operation

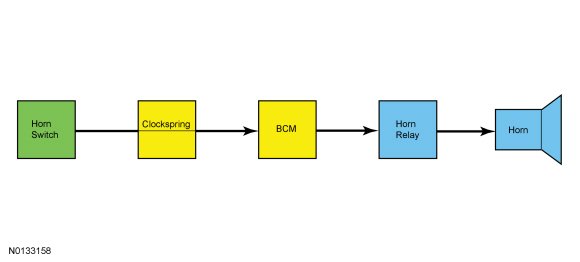

System Diagram





Horn Operation

The horn switch consists of 2 sets of contacts separated by springs. The lower set is connected to ground and the upper set is connected to the horn signal circuit.

When the driver air bag module is pressed, it pushes down on the upper set of contacts, collapsing the springs and allowing the contacts to touch. When the contacts touch, it completes the circuit and provides the ground signal, which is routed through the clockspring to the BCM (Body Control Module).

The BCM (Body Control Module) grounds the horn relay coil to energize the relay. When energized, the horn relay provides voltage to the horn, enabling the horn to sound.
