Fog/Driving Lamp Bulb: Service and Repair

Fog Lamp Bulb

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

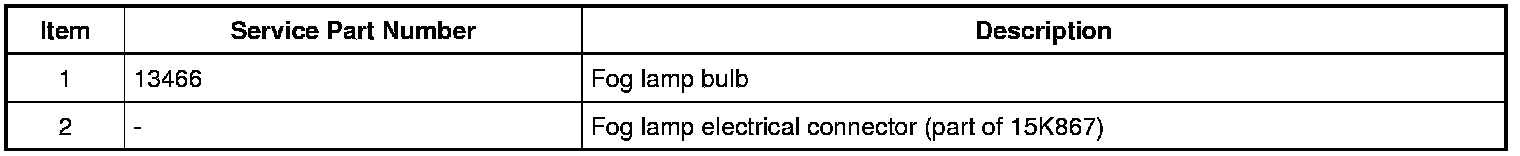

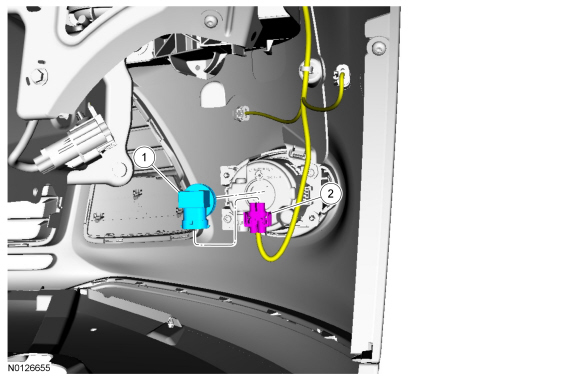

Exploded View










Removal

WARNING: The bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

NOTE: The fog lamp bulb should not be removed from the fog lamp until just before a new bulb is installed. Removing the bulb for an extended period of time may affect fog lamp bulb performance. Contaminants may enter the fog lamp where they can settle on the lens and reflector. Never turn on the fog lamps with the bulb removed.

1. Remove the front fender splash shield. REFER to Fender Splash Shield .

2. NOTE: Rotate the fog lamp bulb counterclockwise approximately one-eighth turn to remove.
Disconnect the electrical connector and remove the fog lamp bulb.

Installation

WARNING: The bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

1. NOTE: Rotate the fog lamp bulb clockwise approximately one-eighth turn to install.
Connect the fog lamp electrical connector and install the fog lamp bulb.

2. Install the front fender splash shield. REFER to Fender Splash Shield .
