Diagnostic Overview

The Stability-Traction Control Disabled Indicator (Sliding Car OFF Icon) Is Never or Always On

Normal Operation and Fault Conditions

REFER to Stability-Traction Control Disabled Indicator (Sliding Car OFF Icon) .

If the stability-traction control disabled indicator message is missing or invalid for less than the programmed length of time, the IPC (Instrument Panel Cluster) defaults the stability-traction control disabled indicator (sliding car OFF icon) to the last indication mode (on/off) based upon the last known good message.

If the BCM (Body Control Module) does not receive the stability-traction control disabled indicator message from the ABS (Anti-Lock Brake System) module for the programmed length of time or longer, the BCM (Body Control Module) and the IPC (Instrument Panel Cluster) set DTC (Diagnostic Trouble Code) U0121:00. If the IPC (Instrument Panel Cluster) does not receive the stability/traction control disabled indicator message, the IPC (Instrument Panel Cluster) defaults the stability-traction control disabled indicator (sliding car OFF icon) off.

Pinpoint Test

1. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE IPC (Instrument Panel Cluster) SELF-TEST

1. Using a scan tool, perform the IPC (Instrument Panel Cluster) self-test.

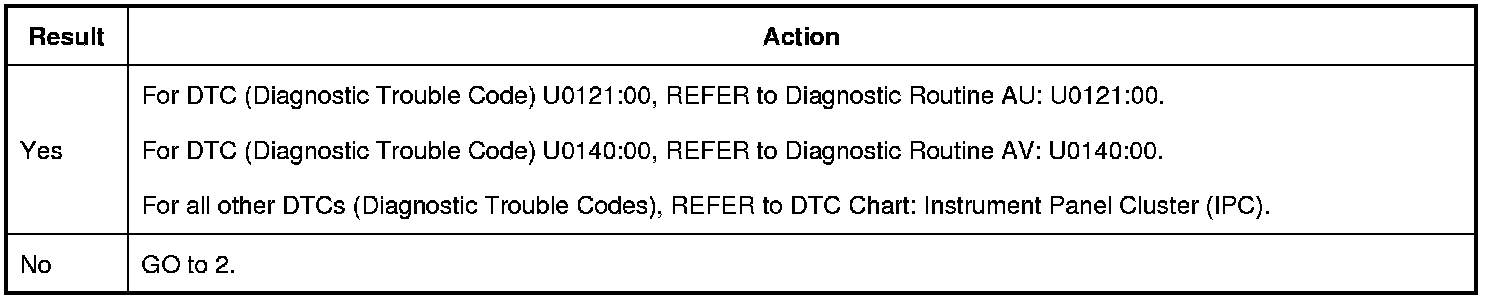

Are any DTCs (Diagnostic Trouble Codes) recorded?







2. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE ABS (Anti-Lock Brake System) MODULE SELF-TEST

1. Using a scan tool, perform the ABS (Anti-Lock Brake System) module self-test.

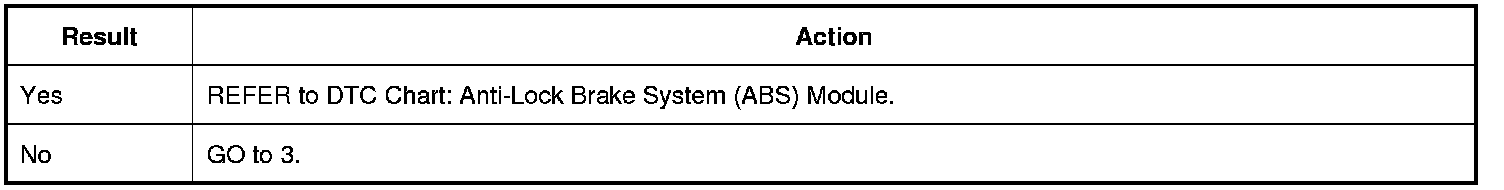

Are any DTCs (Diagnostic Trouble Codes) recorded?







3. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE BCM (Body Control Module) SELF-TEST

1. Using a scan tool, perform the BCM (Body Control Module) self-test.

Are any DTCs (Diagnostic Trouble Codes) recorded?







4. CHECK FOR THE KEY TYPE

1. Check if the key is a MyKey(R) programmed key or an administrator key. Refer to the Owners Literature.

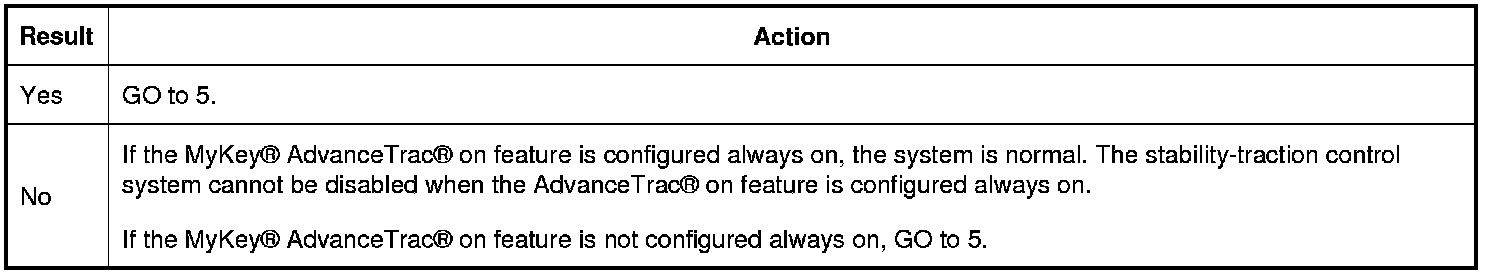

Is the key an administrator key?







5. CHECK THE STABILITY-TRACTION CONTROL DISABLED INDICATOR (SLIDING CAR OFF ICON) USING THE DEALER TEST MODE

1. Ignition OFF.

2. Enter the Dealer Test Mode. REFER to Dealer Test Mode .

3. Scroll to LED test.

4. Monitor the stability-traction control disabled indicator (sliding car OFF icon).

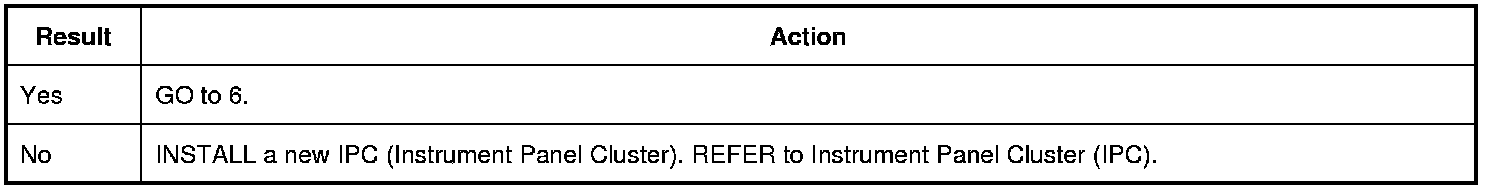

Does the stability-traction control disabled indicator (sliding car OFF icon) illuminate?







6. CHECK THE TRACTION CONTROL SETTING THROUGH THE MESSAGE CENTER

1. Using the LH (Left Hand) steering wheel switch, navigate to the traction control setting menu and observe the traction control setting.

2. Configure the stability-traction control on then off again.

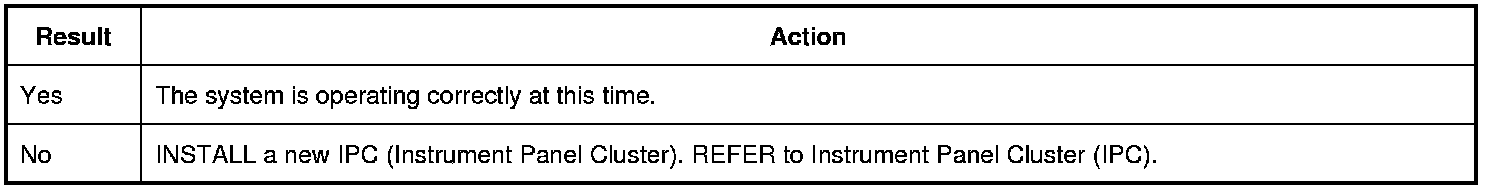

Does the traction control selection change when the feature is configured on and off?
