Diagnostic Overview

The Stability-Traction Control Indicator (Sliding Car Icon) Is Never or Always On

Normal Operation and Fault Conditions

REFER to Stability-Traction Control Indicator (Sliding Car Icon) .

If the stability-traction control indication message is missing or invalid for less than the programmed length of time, the IPC (Instrument Panel Cluster) defaults the stability-traction control indicator (sliding car icon) to the last indication mode (on/off) based upon the last known good message.

If the BCM (Body Control Module) does not receive the stability-traction control indication message from the ABS (Anti-Lock Brake System) module for the programmed length of time or longer, the BCM (Body Control Module) and the IPC (Instrument Panel Cluster) set DTC (Diagnostic Trouble Code) U0121:00. If the IPC (Instrument Panel Cluster) does not receive the stability-traction control indication message, the IPC (Instrument Panel Cluster) defaults the stability-traction control indicator (sliding car icon) on.

Pinpoint Test

1. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE IPC (Instrument Panel Cluster) SELF-TEST

1. Using a scan tool, perform the IPC (Instrument Panel Cluster) self-test.

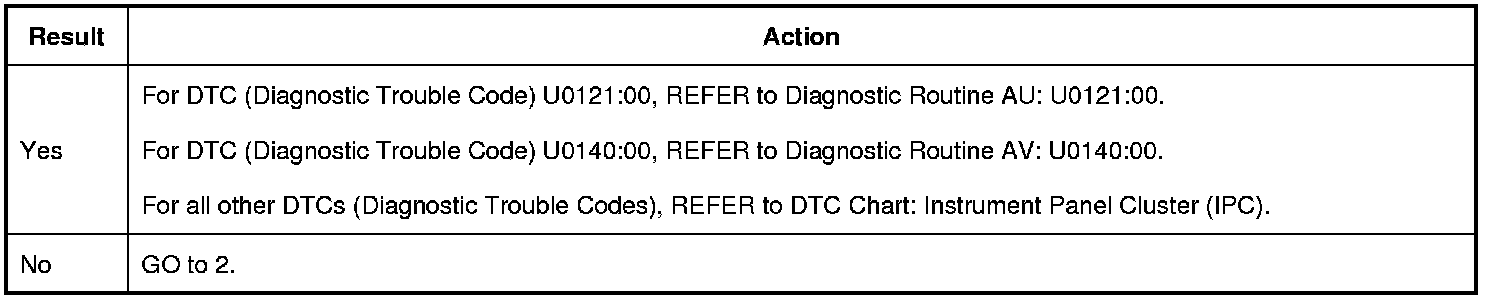

Are any DTCs (Diagnostic Trouble Codes) recorded?







2. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE ABS (Anti-Lock Brake System) MODULE SELF-TEST

1. Using a scan tool, perform the ABS (Anti-Lock Brake System) module self-test.

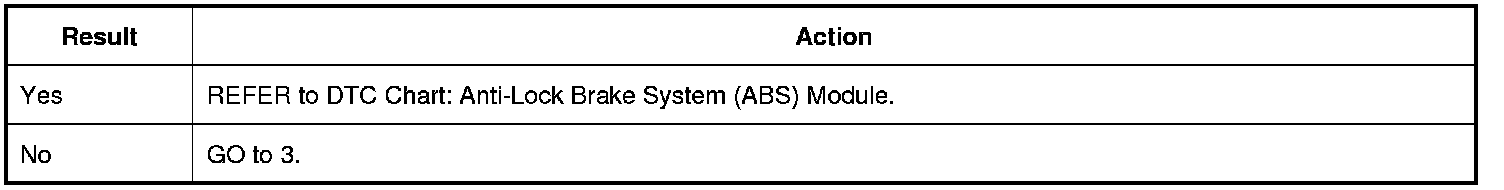

Are any DTCs (Diagnostic Trouble Codes) recorded?







3. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE BCM (Body Control Module) SELF-TEST

1. Using a scan tool, perform the BCM (Body Control Module) self-test.

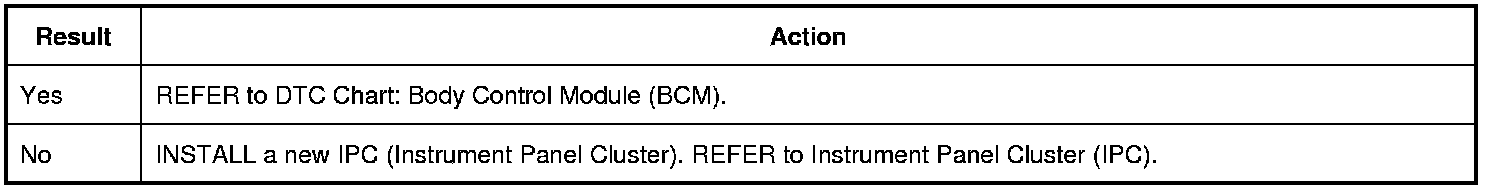

Are any DTCs (Diagnostic Trouble Codes) recorded?
