Diagnostic Overview

The Upshift Message Center Indicator Is Never Or Always On

Normal Operation and Fault Conditions

REFER to Upshift Message Center Indicator .

If the transmission upshift indication request message is missing for less than 1 second, the IPC (Instrument Panel Cluster) defaults the upshift message center indicator to its last state (on or off) based upon the last known good message received.

If the transmission upshift indication request message is missing for 1 second or longer, the BCM (Body Control Module) and IPC (Instrument Panel Cluster) set DTC (Diagnostic Trouble Code) U0100:00. If the transmission upshift indication request message is missing, the IPC (Instrument Panel Cluster) defaults the upshift message center indicator off.

Pinpoint Test

1. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE IPC (Instrument Panel Cluster) SELF-TEST

1. Using a scan tool, perform the IPC (Instrument Panel Cluster) self-test.

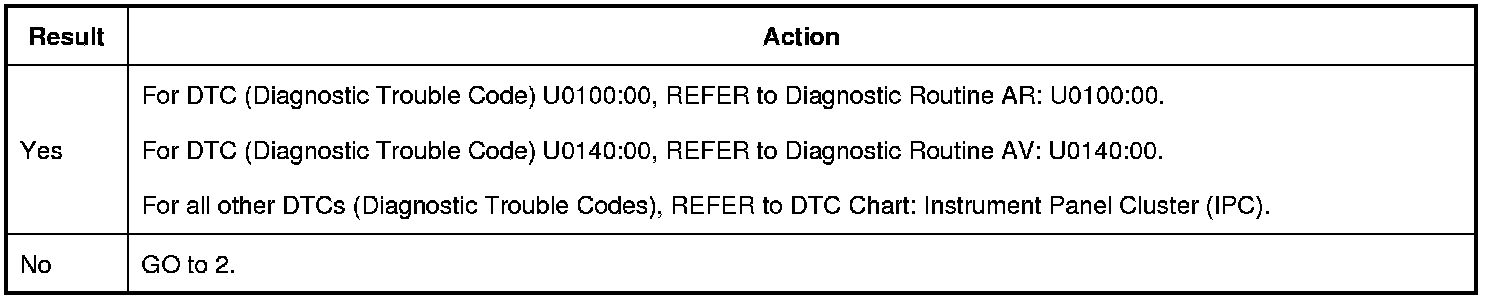

Are any DTCs (Diagnostic Trouble Codes) recorded?







2. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE BCM (Body Control Module) SELF-TEST

1. Using a scan tool, perform the BCM (Body Control Module) self-test.

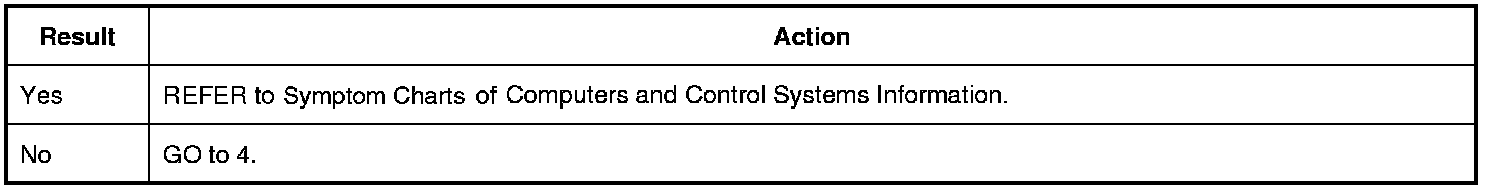

Are any DTCs (Diagnostic Trouble Codes) recorded?







3. RETRIEVE AND RECORD THE DTCs (Diagnostic Trouble Codes) FROM THE PCM (Powertrain Control Module) KOEO (Key ON Engine OFF) SELF-TEST

1. Using a scan tool, perform the PCM (Powertrain Control Module) KOEO (Key ON Engine OFF) self-test.

Are any PCM (Powertrain Control Module) DTCs (Diagnostic Trouble Codes) recorded?







4. VERIFY THE CRUISE CONTROL IS ENABLED IN THE CAR CONFIGURATION

1. Using a scan tool, view the car configuration parameters through the module programming menu. REFER to Module Configuration and Parameter Chart .

Are the gearbox, gearbox type and shift indicator parameters enabled for a manual transmission?
