Diagnostic Routine BS

Diagnostic Routine BS

Diagnostic Overview

U0264:00

Normal Operation and Fault Conditions

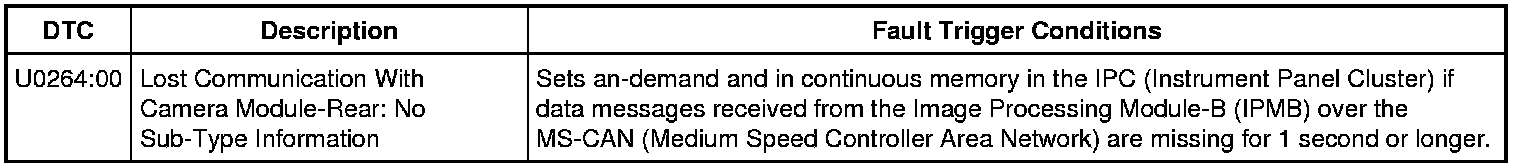

IPC (Instrument Panel Cluster) DTC Fault Trigger Conditions






Pinpoint Test

1. VERIFY THE CUSTOMER CONCERN

1. Ignition ON.

2. Verify there is an observable symptom present.

Is an observable symptom present?







2. CHECK THE COMMUNICATION NETWORK

1. Ignition ON.

2. Using a scan tool, perform the network test.

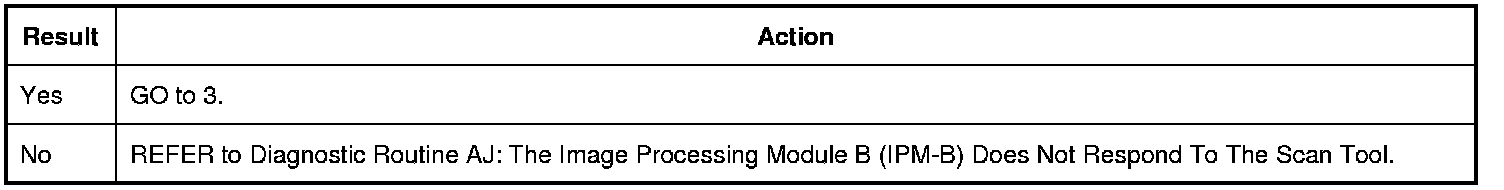

Does the IPM-B (Image Processing Module - B) pass the network test?







3. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE IPM-B (Image Processing Module - B) SELF-TEST

1. Using a scan tool, retrieve the continuous memory DTCs (Diagnostic Trouble Codes) from the IPM-B (Image Processing Module - B).

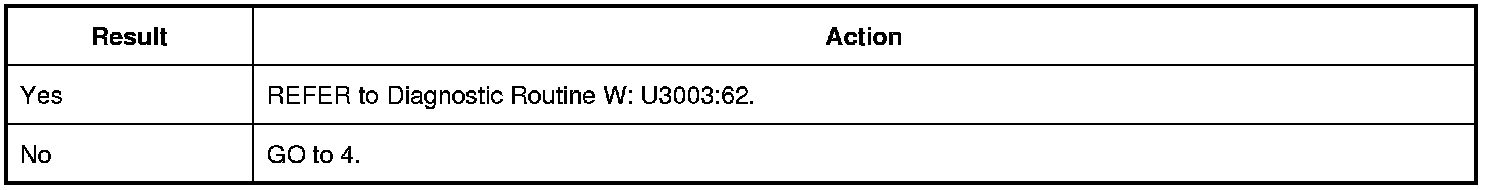

Is DTC (Diagnostic Trouble Code) U3003:62 recorded?







4. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE IPC (Instrument Panel Cluster) SELF-TEST

1. Using a scan tool, perform the IPC (Instrument Panel Cluster) self-test.

Are any DTC (Diagnostic Trouble Code) recorded?







5. RECHECK THE IPC (Instrument Panel Cluster) DTCs (Diagnostic Trouble Codes)

1. NOTE: If new modules were installed prior to the DTC (Diagnostic Trouble Code) being set, the module configuration can be incorrectly set during the PMI (Programmable Module Installation) or the PMI (Programmable Module Installation) may not have been carried out.
Clear the DTCs (Diagnostic Trouble Codes).

2. Wait 10 seconds.

3. Repeat the IPC (Instrument Panel Cluster) self-test.

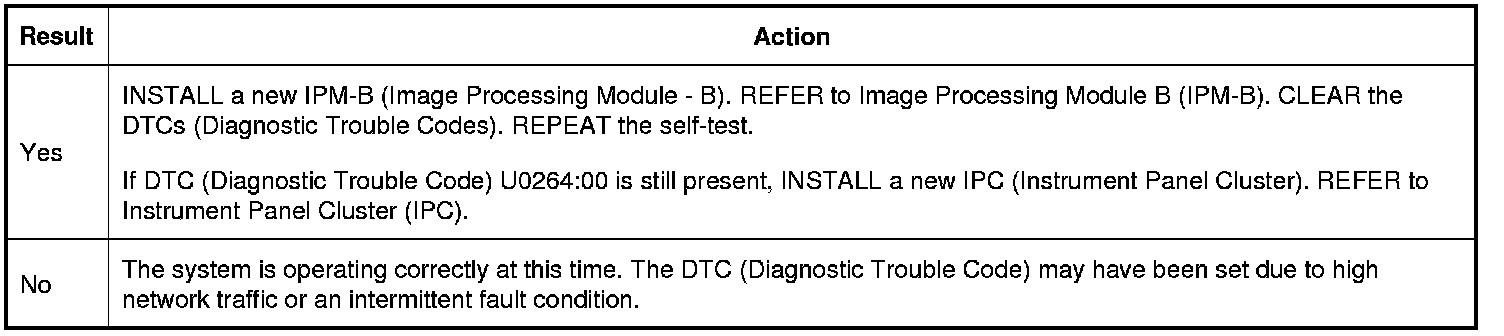

Is DTC (Diagnostic Trouble Code) U0264:00 still present?
