FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Sensors and Switches - HVAC
>>
Discharge Air Temperature Sensor / Switch
>>
Diagrams
>>

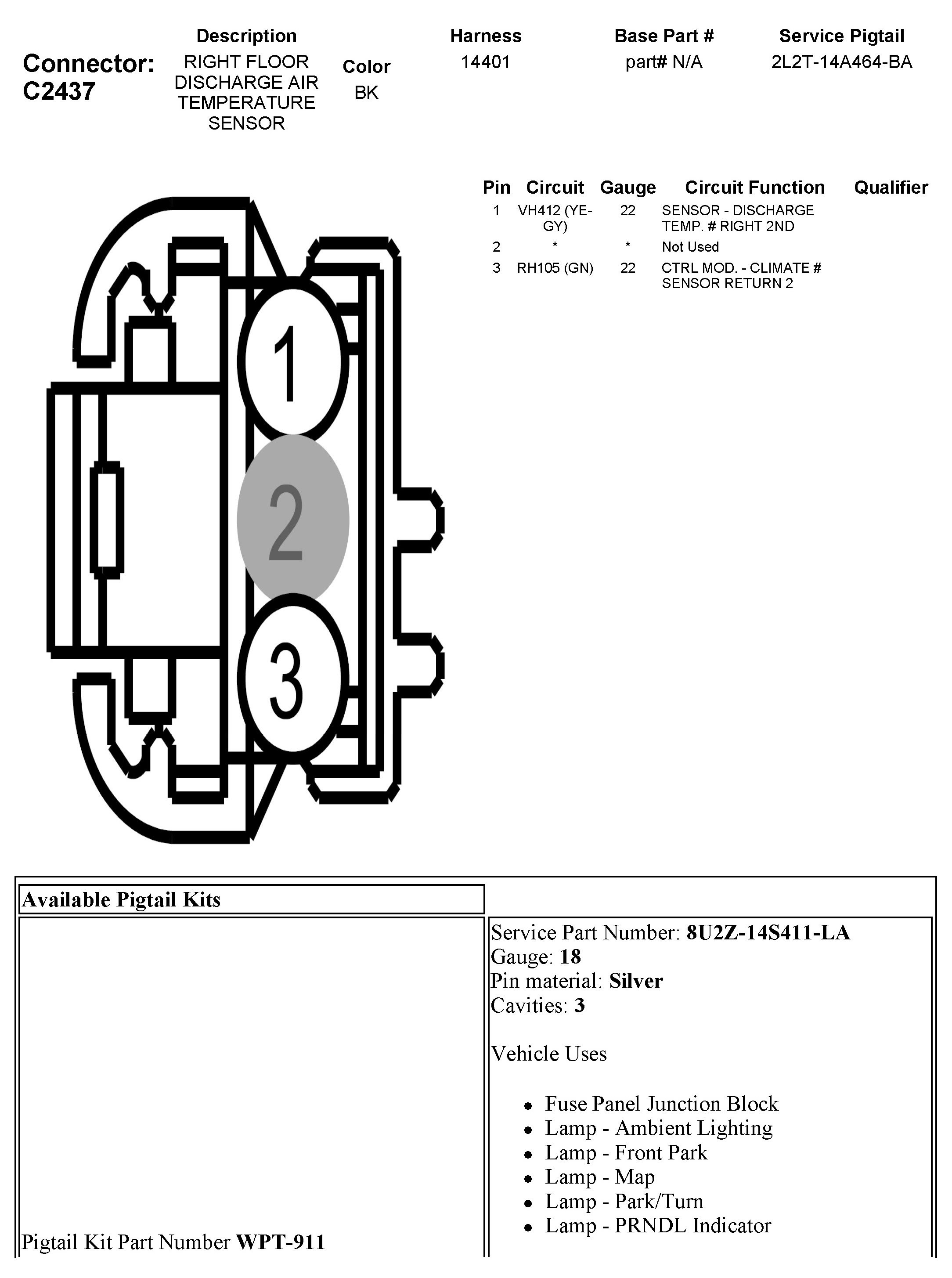

C2437 Right Floor Discharge Air Temperature Sensor
C2437 Right Floor Discharge Air Temperature Sensor
