Oil Pressure Sender: Service and Repair

Engine Oil Pressure (EOP) Switch

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

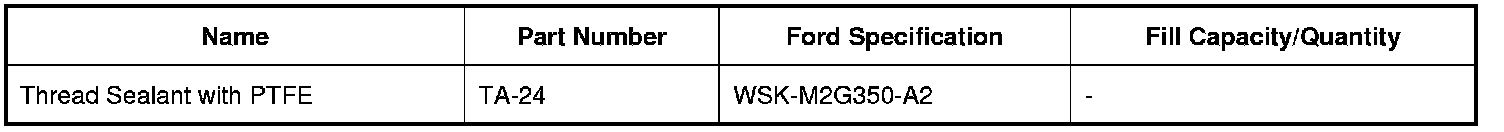

Material(s)

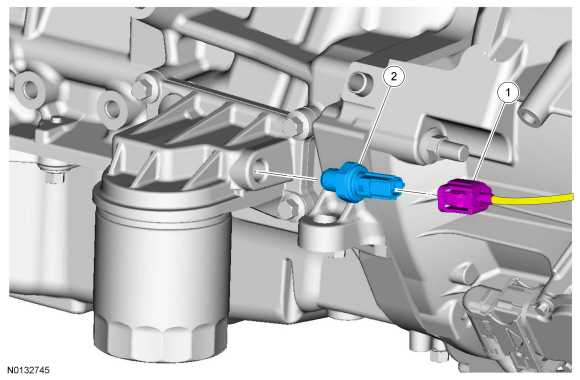

Exploded View









Removal

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting Vehicle Lifting.

2. Remove the 8 retainers and the underbody insulator.





3. Disconnect the EOP (Engine Oil Pressure) switch electrical connector.





4. NOTE: Apply thread sealant to the EOP (Engine Oil Pressure) switch threads.
Remove the EOP (Engine Oil Pressure) switch.
- To install, tighten to 12 Nm (106 lb-in).





Installation

1. To install, reverse the removal procedure.
