Camshaft Phaser and Sprocket

Camshaft Phaser and Sprocket

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

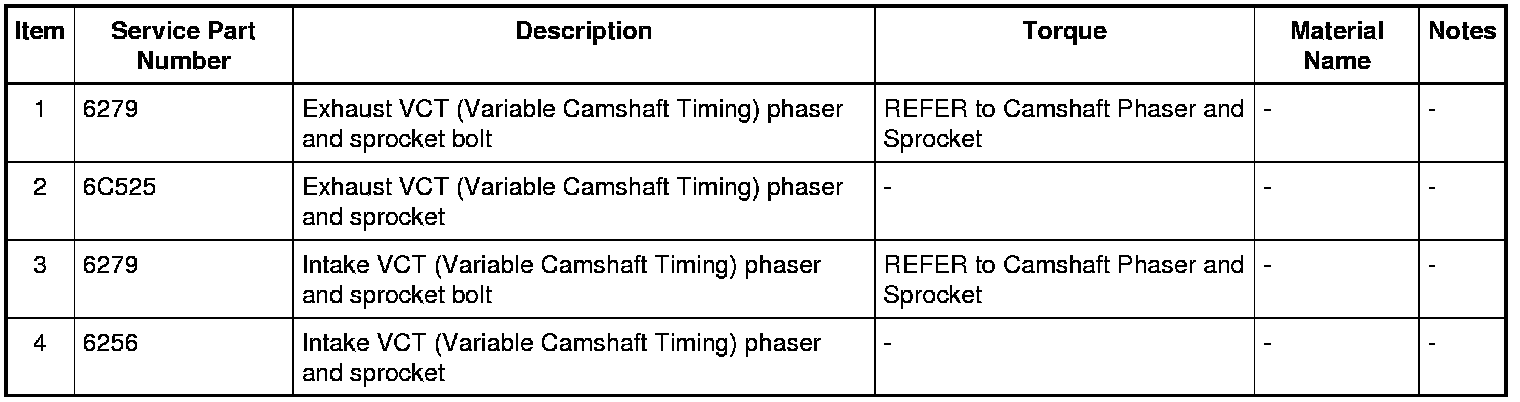

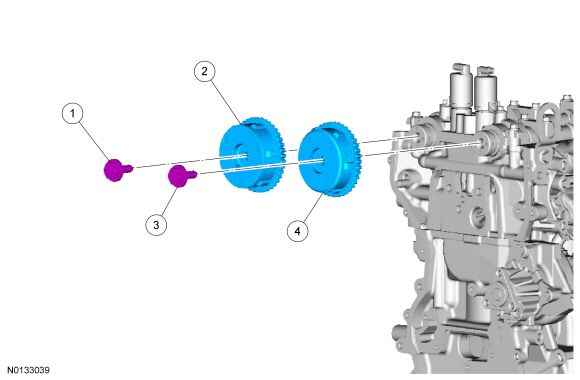

Exploded View









Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

1. Remove the timing drive components. REFER to Timing Drive Components .

2. Remove the 2 bolts and the exhaust and intake camshaft phaser and sprockets.





Installation

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

1. NOTE: The VCT (Variable Camshaft Timing) phaser and sprocket bolts are final torqued in the timing drive installation procedure.

Position the exhaust and intake VCT (Variable Camshaft Timing) phaser and sprockets and install the bolts finger tight.





2. Install the timing drive components. REFER to Timing Drive Components .
