Thermostat Housing: Service and Repair

Thermostat Housing - 2.0L GDI

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

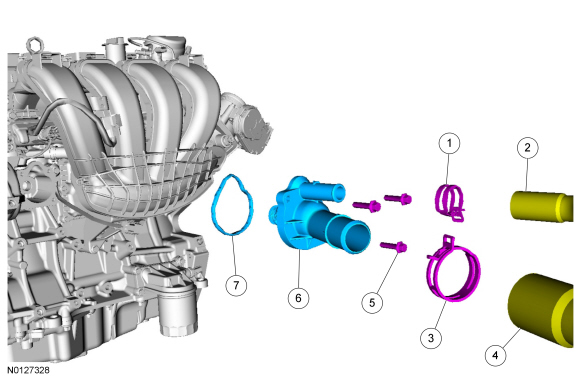

Exploded View

Thermostat Housing










Removal

Removal steps in this procedure may contain installation details

1. REFER to Cooling System Draining .

2.





3.






- 17 Nm (150 lb-in).

4. NOTICE: Cover the generator to prevent coolant contamination and possible damage to generator.

Completely cover the generator with waterproof plastic.

5.





6.






- 10 Nm (89 lb-in).

Installation

1. To install, reverse the removal procedure.

2. REFER to Cooling System Filling And Bleeding - With A Vacuum Cooling System Filler or REFER to Cooling System Filling And Bleeding - Without A Vacuum Cooling System Filler .
