Grille Shutter And Linkage

Grille Shutter And Linkage

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

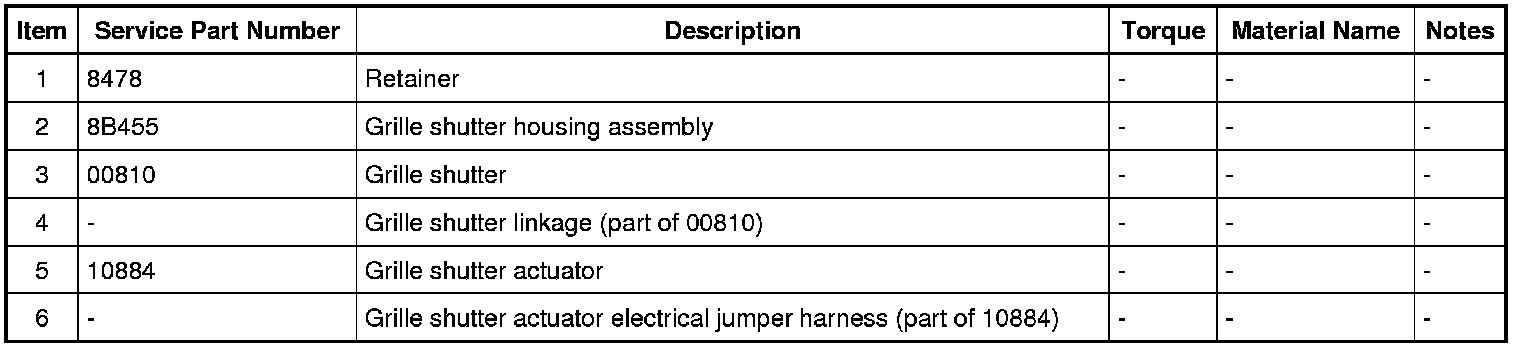

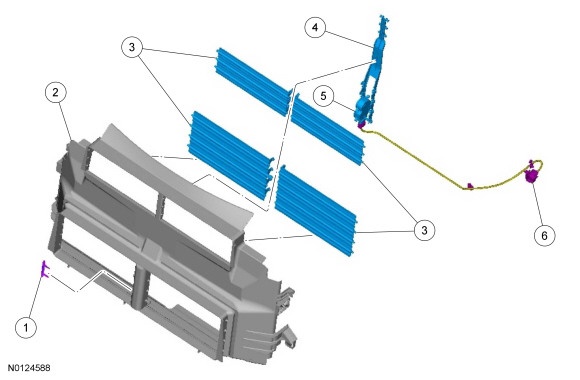

Exploded View










Removal

NOTE: The removal steps in this procedure may include installation details.

1. Remove the assembly. REFER to Grille Shutter Assembly .

2.





3. NOTE: All shutter are numerically matched to the grille shutter housing to aid in installation.
Slightly deflect and remove each shutter individually.

All shutters





Installation

1. To install, reverse the removal procedure.
