Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> C652A Passenger Door Module (PDM)

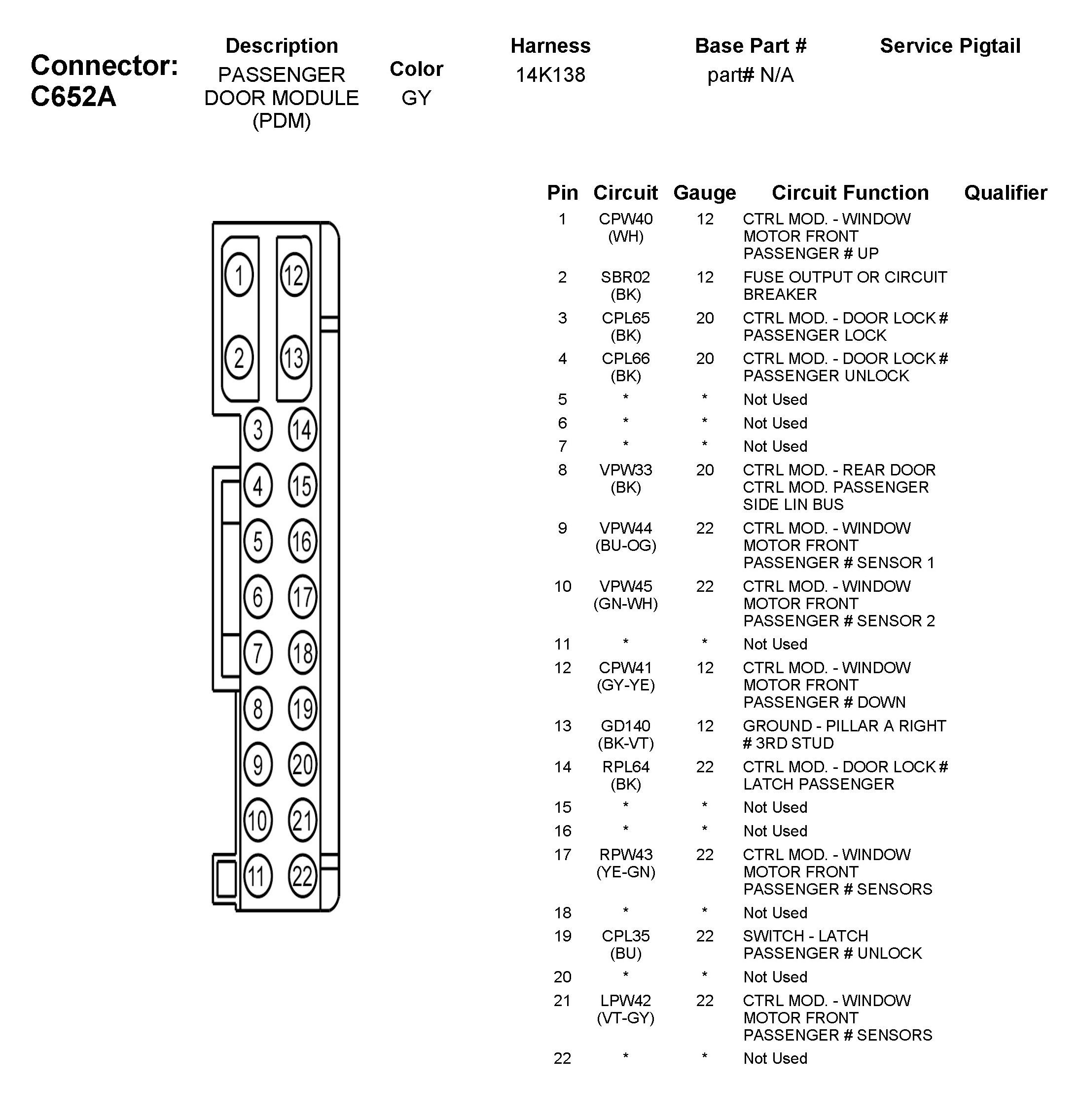

C652A Passenger Door Module (PDM)
