Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

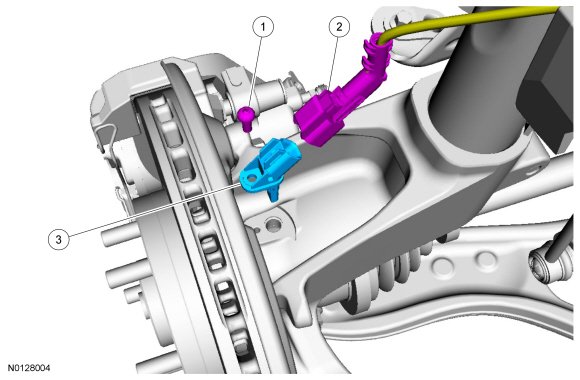

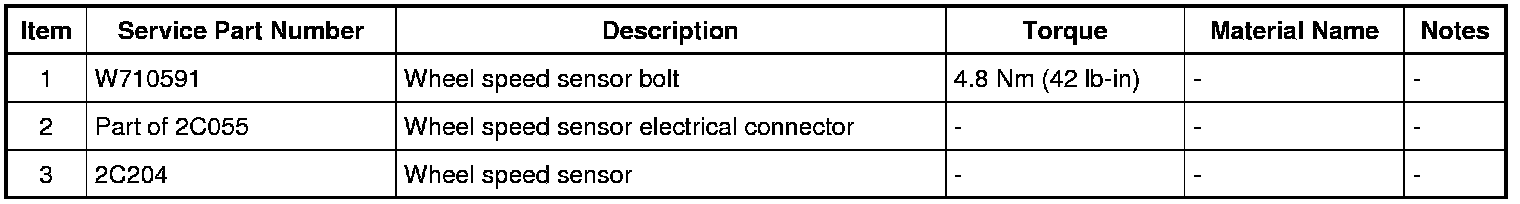

Exploded View










Removal

1. Remove the wheel and tire. REFER to Wheel and Tire .

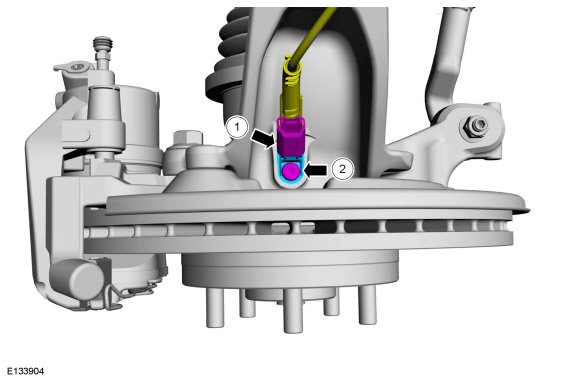

2. Disconnect the wheel speed sensor electrical connector and then remove the wheel speed sensor bolt and wheel speed sensor.
- To install, tighten to 4.8 Nm (42 lb-in).





Installation

1. NOTE: Make sure that the sensor housing is clean and free of foreign material.
To install, reverse the removal procedure.
