Sunroof / Moonroof Switch: Service and Repair

Roof Opening Panel Control Switch

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

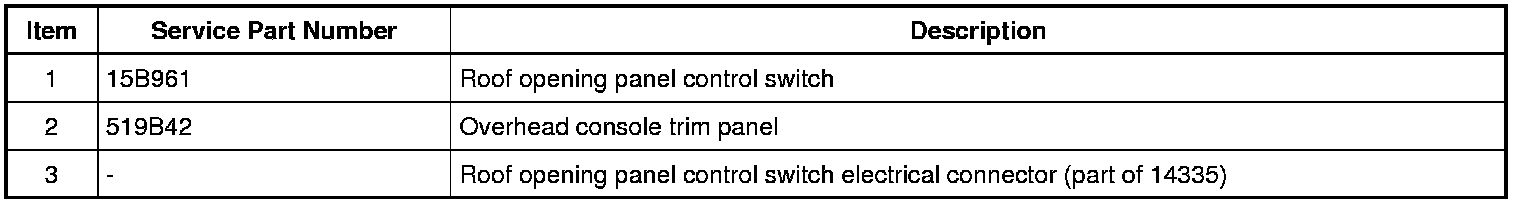

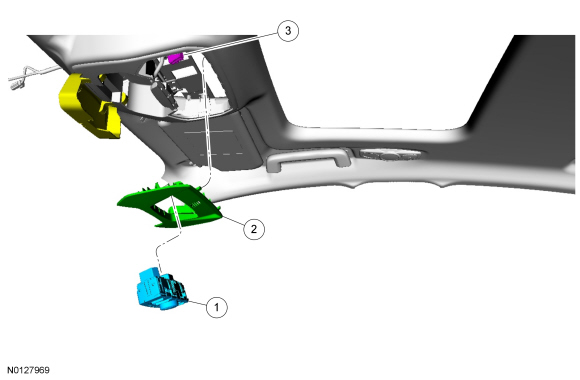

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Open the sunglass bin and insert the interior trim removal tool in the openings to release the clips. Remove overhead console trim panel.

- Disconnect the electrical connectors.

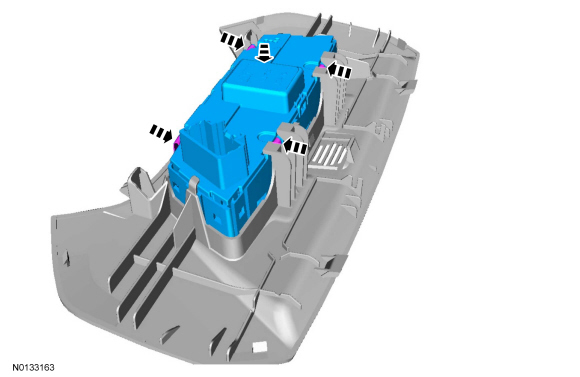

2.





Installation

1. To install, reverse the removal procedure.
