Symptom Related Diagnostic Procedures

Symptom Chart(s)

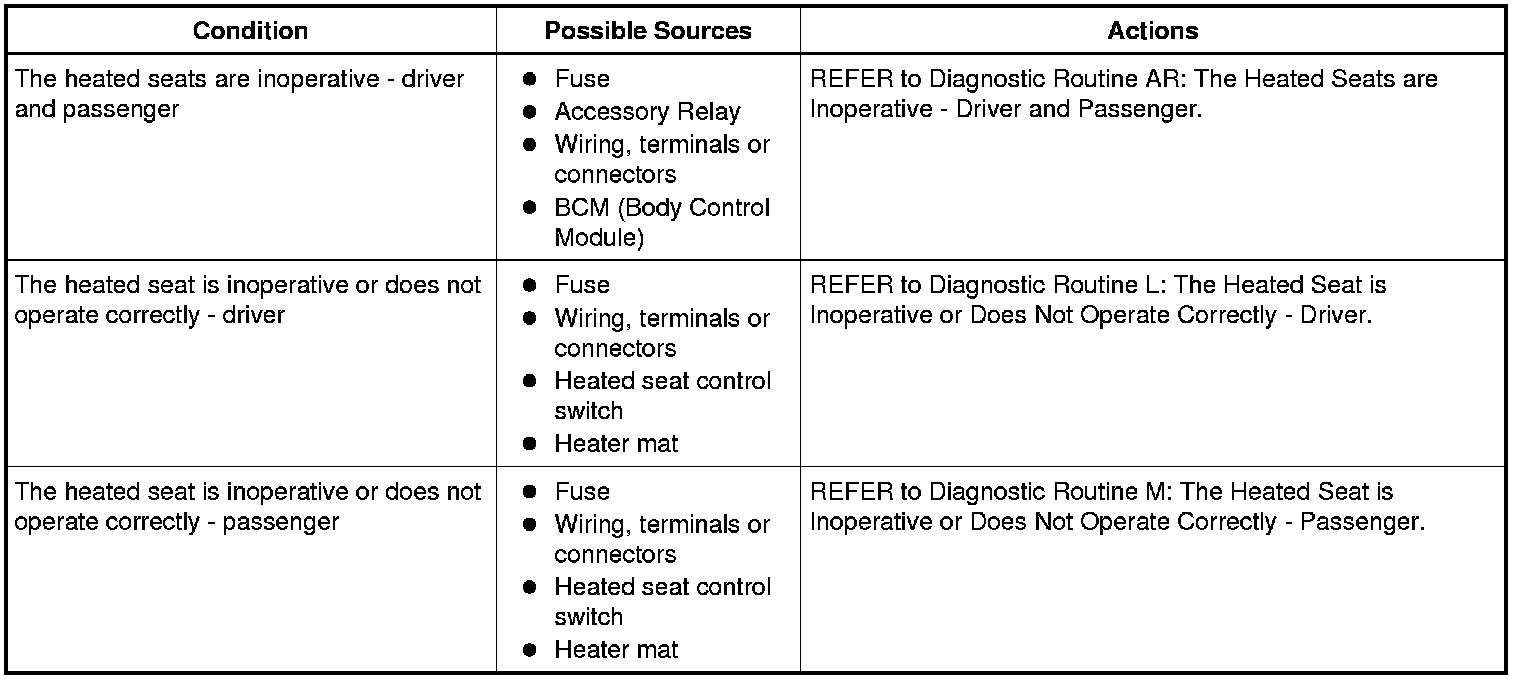

Symptom Chart: Seating - Heated

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information about these practices.

Symptom Chart

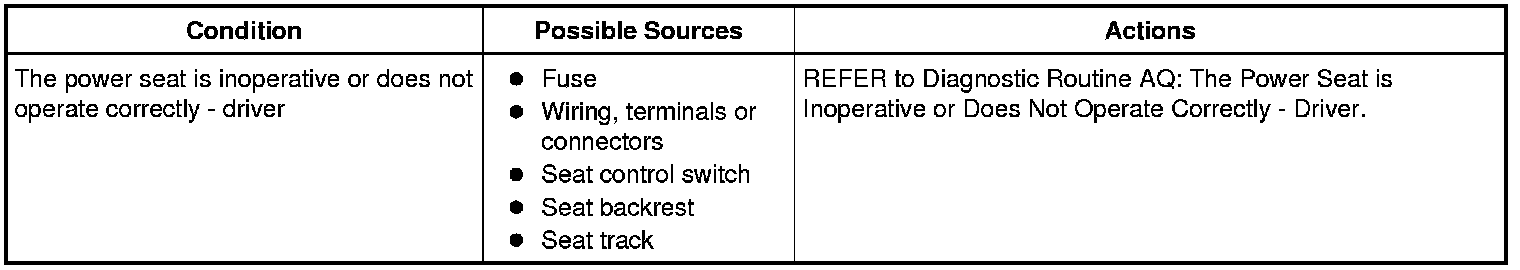

Symptom Chart: Seating - Power

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information about these practices.

Symptom Chart
