Seating - 2nd Row

Seat - Exploded View

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Exploded View

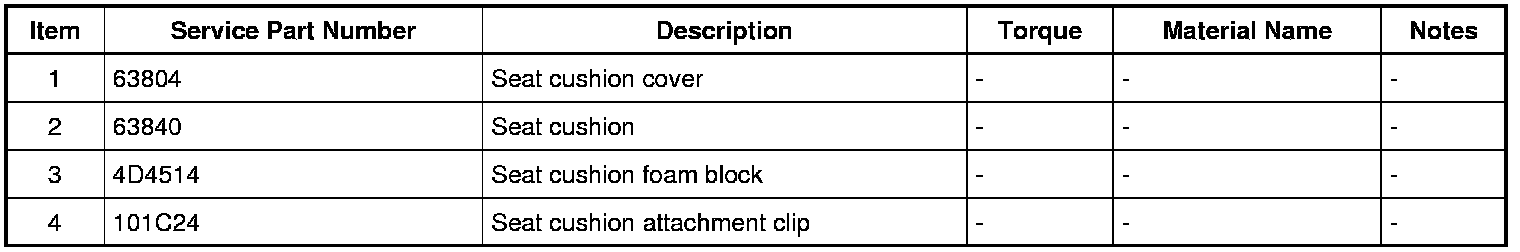

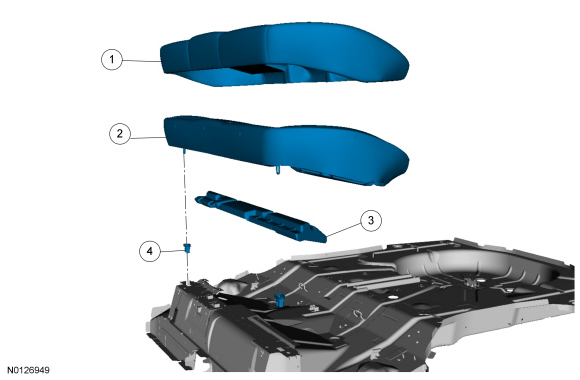

Seat Cushion - Full

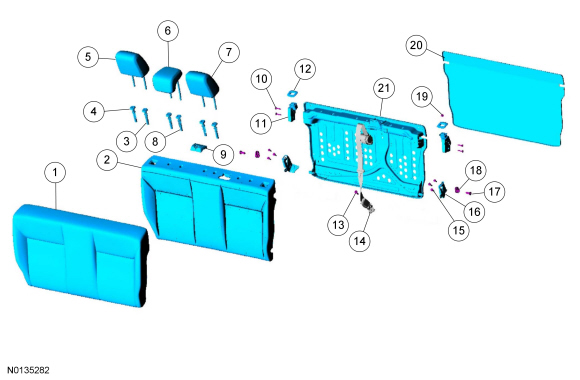

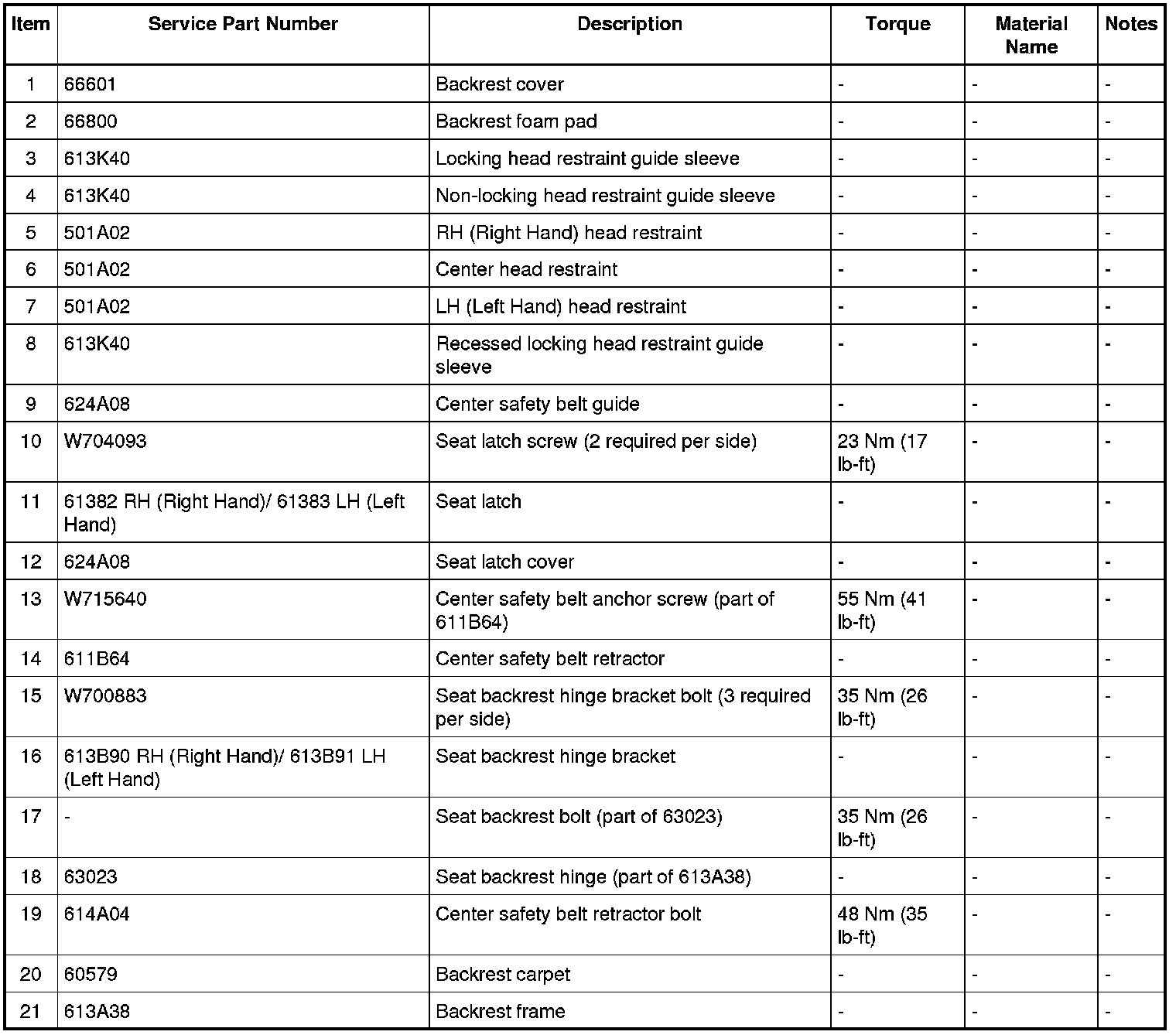

Backrest - Full

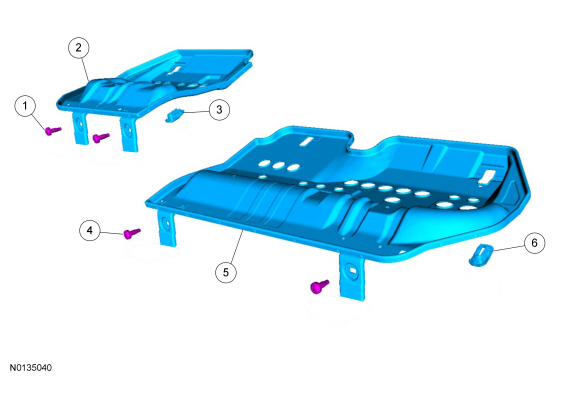

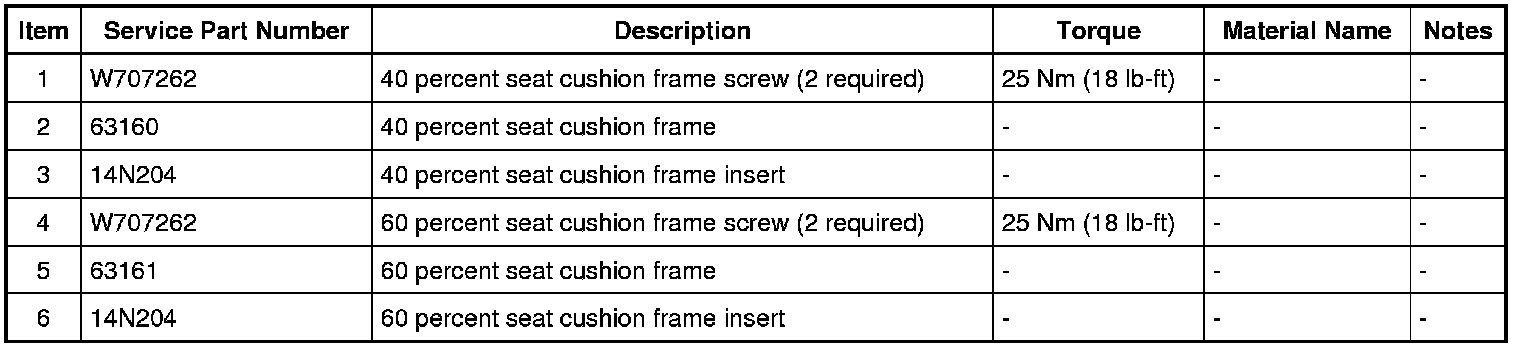

Seat Cushion Frame - 60/40

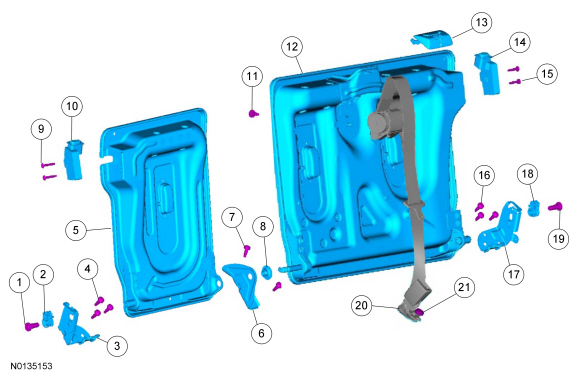

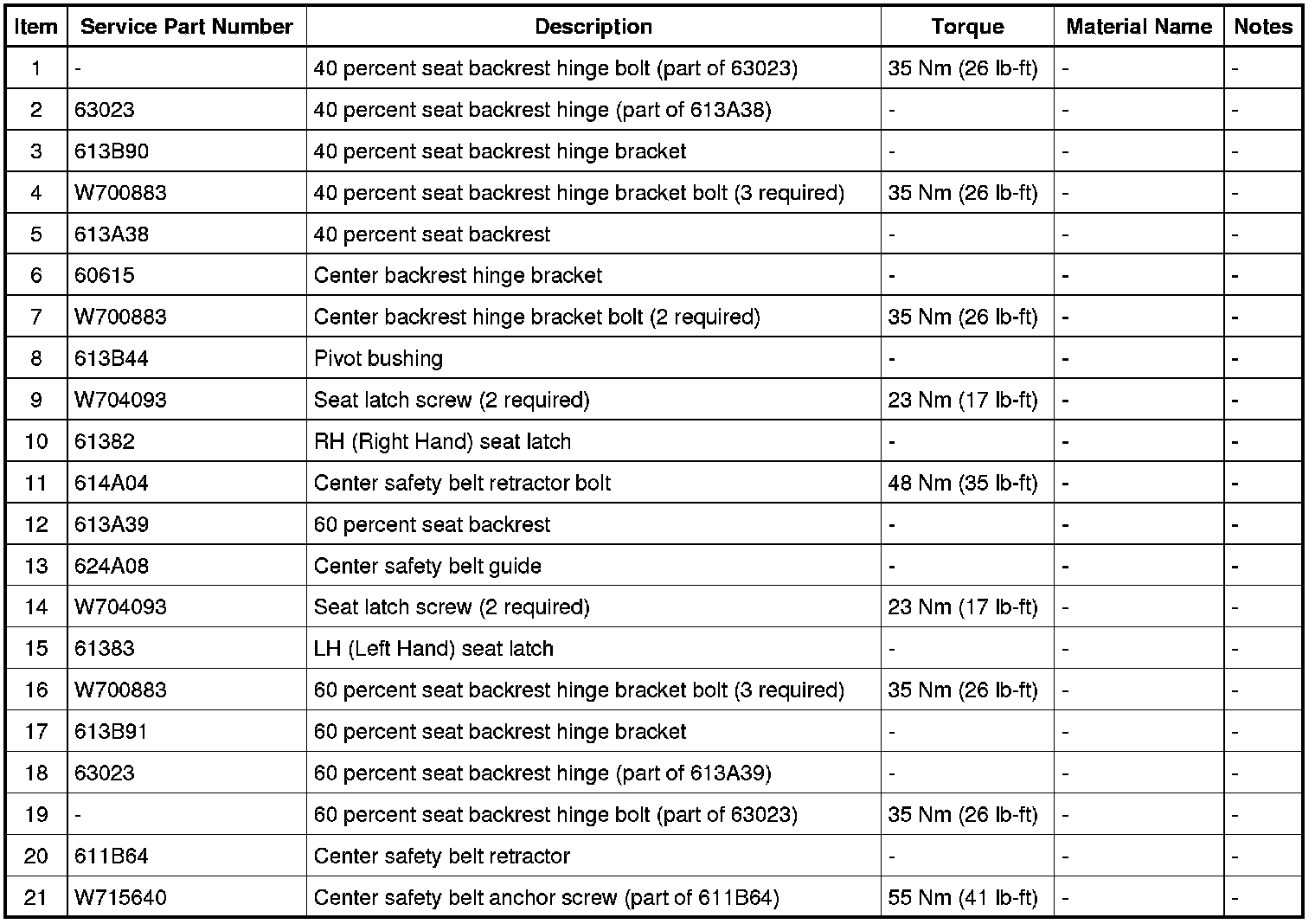

Backrest Frame - 60/40

60/40 seat backrest frame with armrest shown, all others similar.

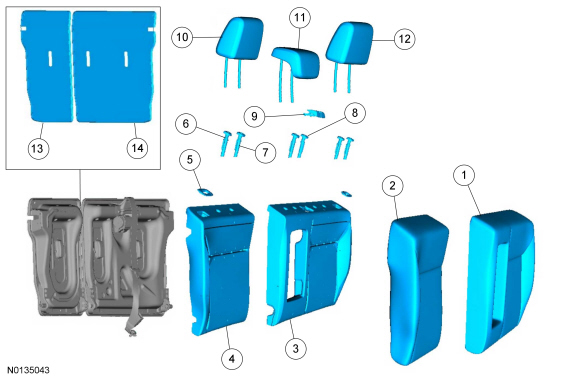

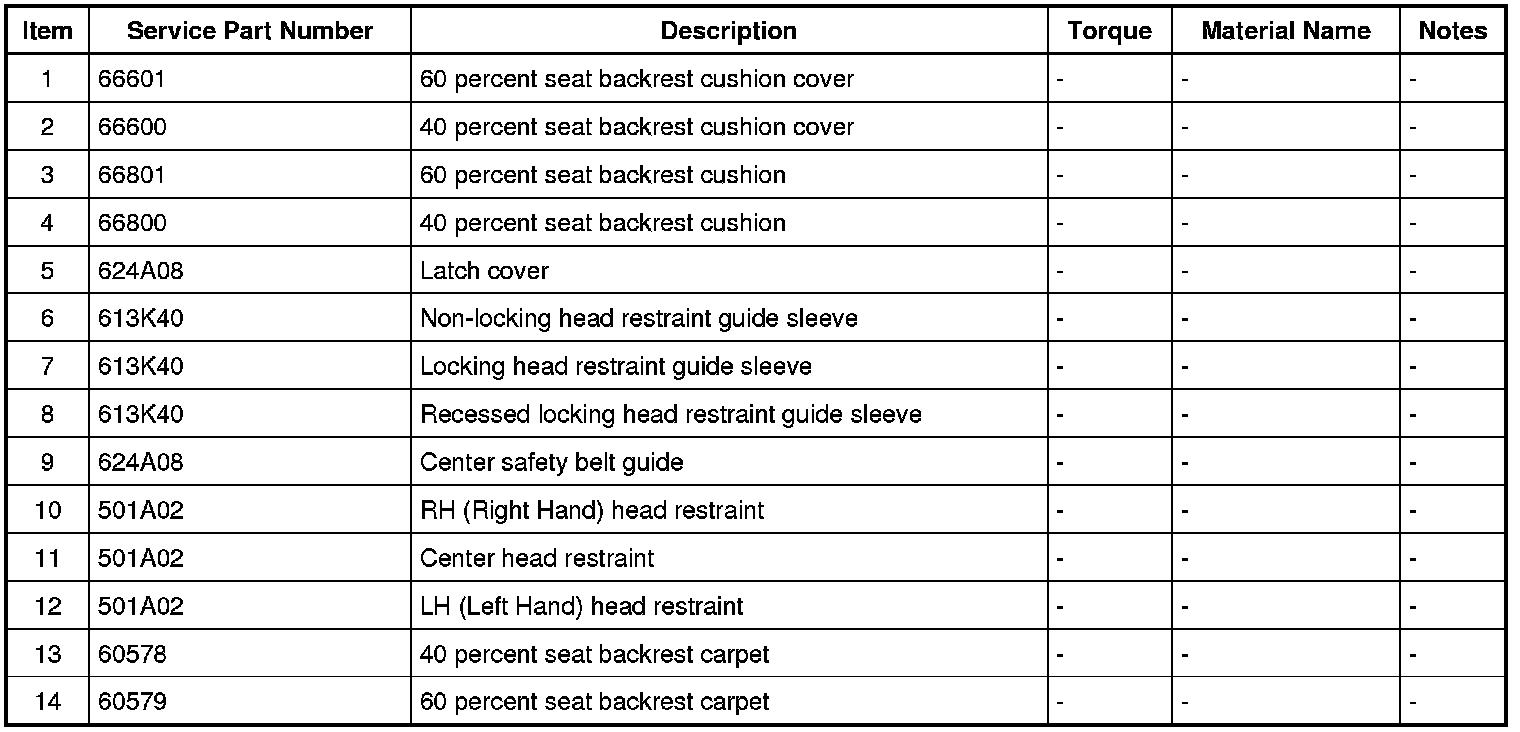

Backrest Cushion - 60/40

60/40 seat backrest with armrest shown, all others similar.
