Seat Latch Striker - Rear, 5-Door

Seat Latch Striker - Rear, 5-Door


WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

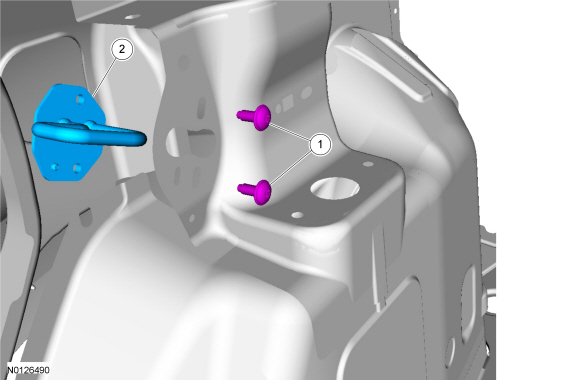

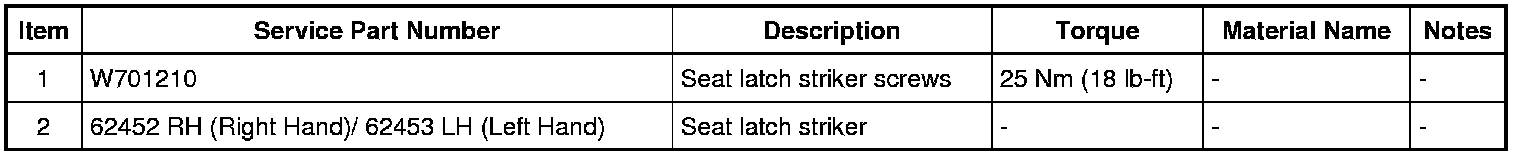

Exploded View

RH (Right Hand) seat latch striker shown, LH (Left Hand) seat latch striker similar.










Removal

1. Remove the middle C-pillar trim panel. REFER to C-Pillar Trim Panel - Middle, 5-Door Hatchback .

2.






- 25 Nm (18 lb-ft)

Installation

1. To install, reverse the removal procedure.
