Seat Cushion Cover - Full Bench

Seat Cushion Cover - Full Bench

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

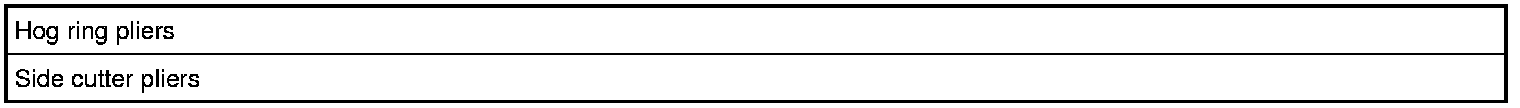

Special Tool(s)

General Equipment






Removal

1. Remove the full bench seat cushion. REFER to Seat Cushion - Full Bench .

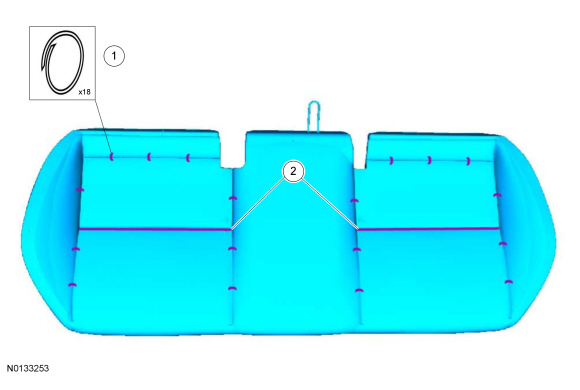

2.

1. General Equipment: Side Cutter Pliers

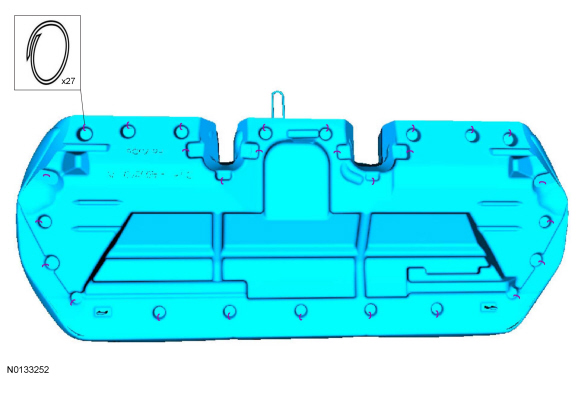

3.

1. General Equipment: Side Cutter Pliers

2. NOTICE: Use care when separating the seat cushion cover from the hook-and-loop strip, or the hook-and-loop strip may be torn from the seat cushion foam pad.






Installation

1. To install, reverse the removal procedure.

1. General Equipment: Hog Ring Pliers
