Seat Cushion Cover - 60-40 Bench

Seat Cushion Cover - 60-40 Bench


WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

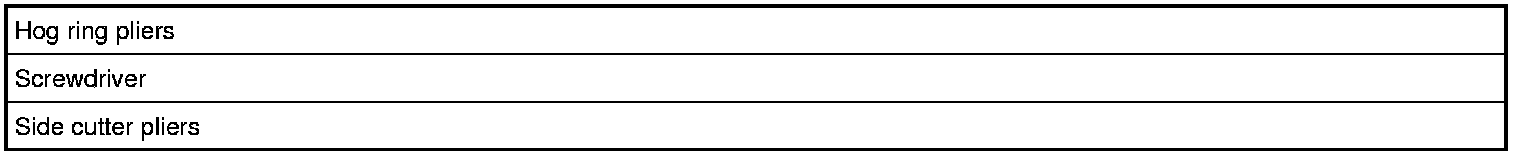

Special Tool(s)

General Equipment:

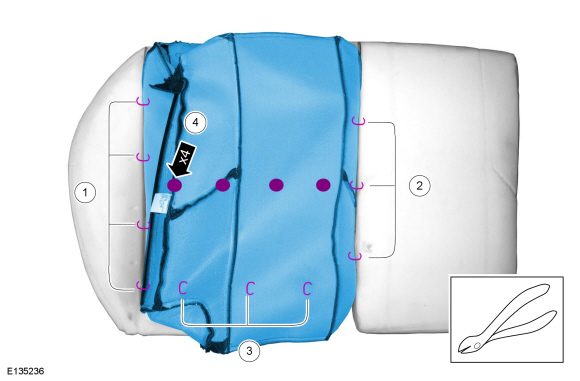

Removal

1. Remove the seat cushion. REFER to Seat Cushion - 60-40 Bench .

2. 40 percent sear cushion.

1. General Equipment: Screwdriver






3. 60 percent sear cushion.

1. General Equipment: Screwdriver






4. 40 percent sear cushion.

1. General Equipment: Side Cutter Pliers






5. 60 percent sear cushion.

1. General Equipment: Side Cutter Pliers






Installation

1. To install, reverse the removal procedure.

1. General Equipment: Hog Ring Pliers
