Seat Backrest Cover

Seat Backrest Cover


WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Special Tool(s)

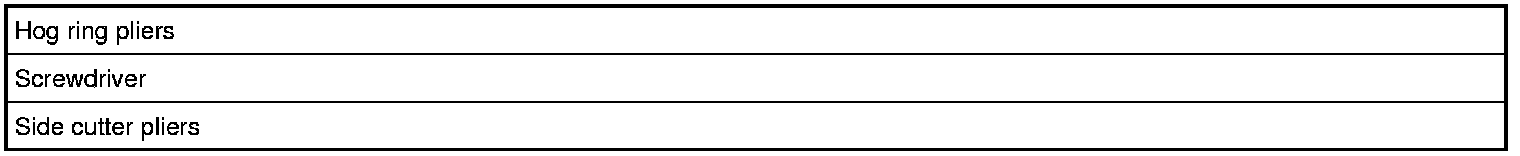

General Equipment






Removal

NOTE: 60/40 percent seat backrest shown, full bench seat backrest similar.

1. NOTE: 60 percent seat only
If equipped, remove the armrest. REFER to Armrest .

2. Remove the seat backrest. REFER to Seat Backrest .

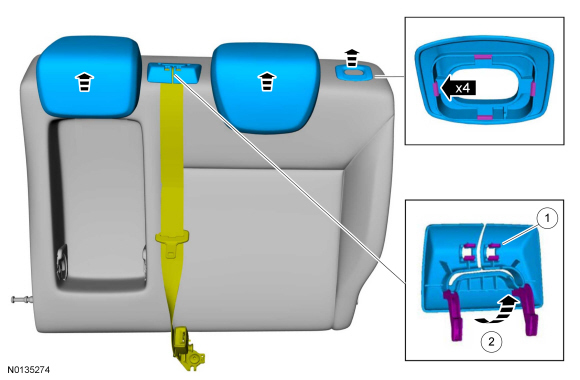

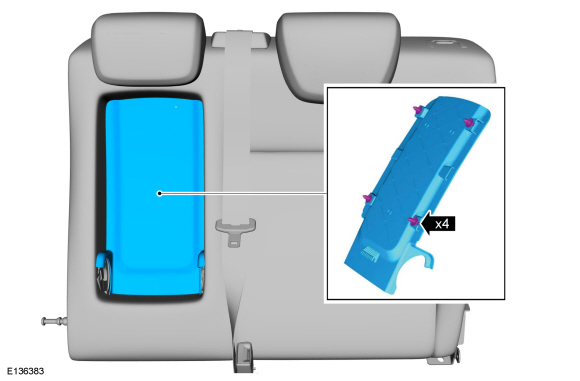

3. 60 percent seat with an armrest.





4. 40 percent seat.






- 35 Nm (26 lb-ft)

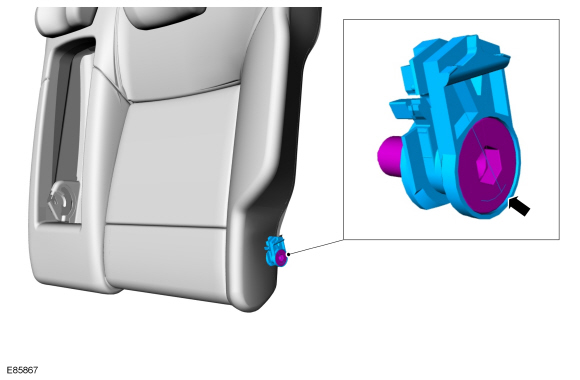

5. 60 percent seat.






- 35 Nm (26 lb-ft)

6. 40 percent seat.





7. 60 percent seat.

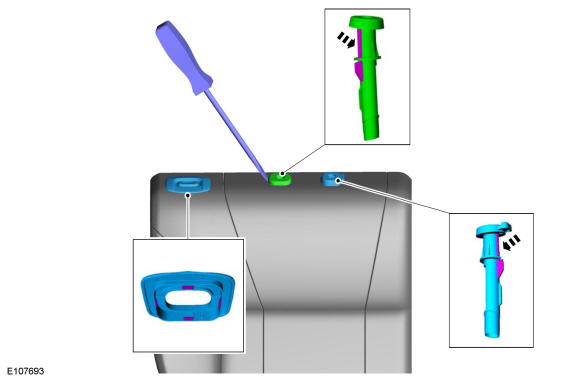

8. 40 percent seat.

1. General Equipment: Screwdriver

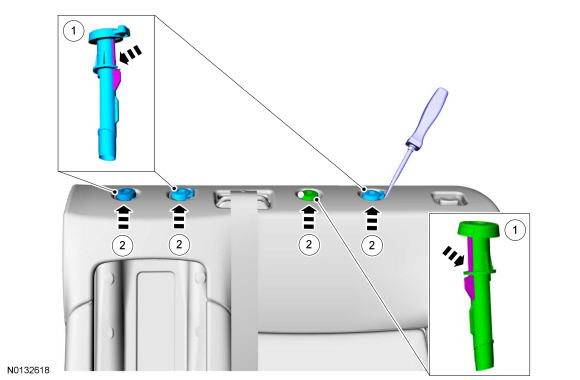

9. 60 percent seat.

1. General Equipment: Screwdriver






10. NOTE: 60 percent seat shown, all others similar.

NOTE: Touching the adhesive surface will impair bonding.
Apply a glue/adhesive similar to that used to originally retain the backrest carpet.

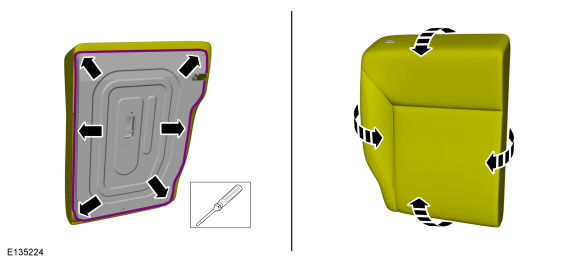

11. 40 percent seat.

1. General Equipment: Screwdriver






12. 60 percent seat.

1. General Equipment: Screwdriver






13. 40 percent seat.

1. General Equipment: Side Cutter Pliers

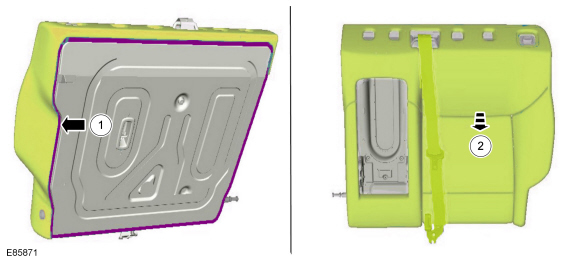

14. 60 percent seat.

1. General Equipment: Side Cutter Pliers






Installation

1. To install, reverse the removal procedure.

1. General Equipment: Hog Ring Pliers
