Seat Backrest

Seat Backrest

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Removal

1. If equipped with a 60 percent seat cushion.





2. If equipped with a full bench seat cushion, remove the rear seat cushion. REFER to Seat Cushion - Full Bench .

3. NOTE: Note the position of the component before removal and make sure that the component is installed to the position noted before removal.

NOTE: Install the bolt finger tight before final tightening.

1. Visual check

2.

3.
- 55 Nm (41 lb-ft)

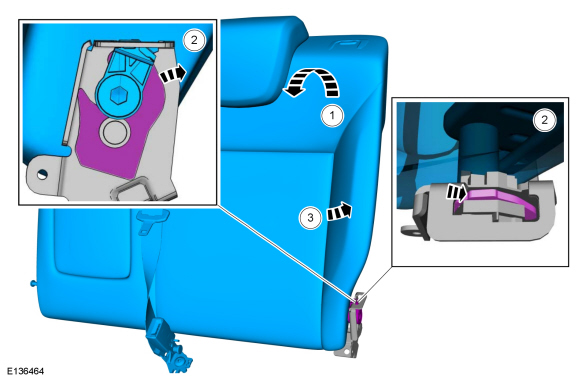

4. 40 percent seat backrest shown, full bench seat backrest similar.

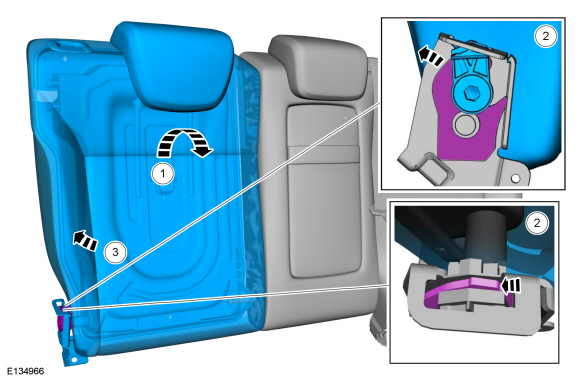

5. 60 percent seat backrest shown, full bench seat backrest similar.





Installation

1. To install, reverse the removal procedure.
