Seat Backrest

Seat Backrest

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Special Tool(s)

General Equipment:






Removal

1. Remove the front seat. REFER to Seat .

2. Vehicle with power seat.






- 2.5 Nm (22 lb-in)

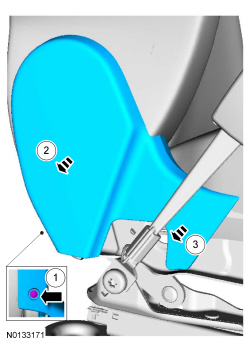

3. Vehicle with manual seat.






- 4 Nm (35 lb-in)

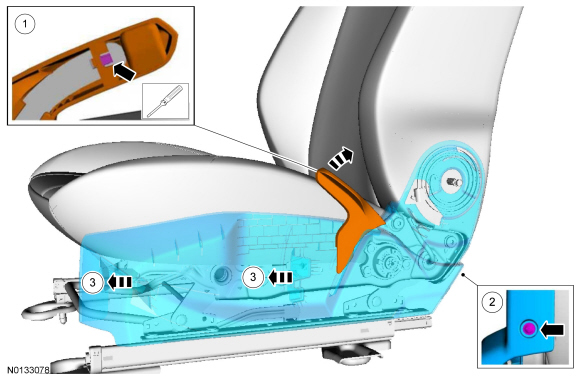

4. Vehicle with manual seat.

1. General Equipment: Screwdriver






- 2.5 Nm (22 lb-in)

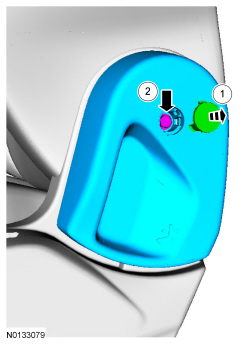

5. All vehicles.






- 2.5 Nm (22 lb-in)

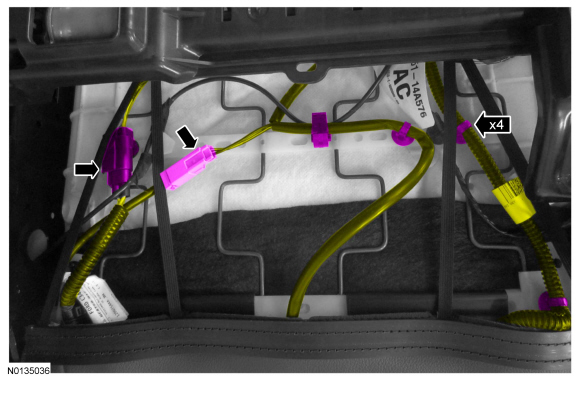

6. Vehicle with power and heated seat shown, all others similar.

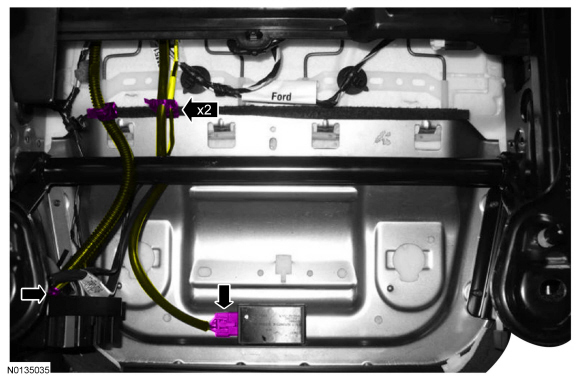

7. Vehicle with power and heated seat shown, all others similar.





8. All vehicles.





9. All vehicles.






- 45 Nm (33 lb-ft)

Installation

1. To install, reverse the removal procedure.
