Sun Shade: Service and Repair

Roof Opening Panel Shade Assembly

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

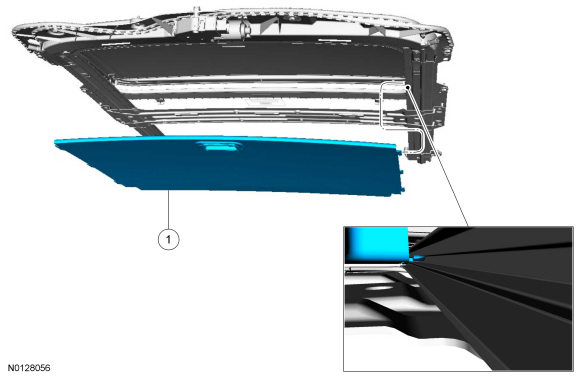

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the roof opening panel glass. REFER to Roof Opening Panel Glass .

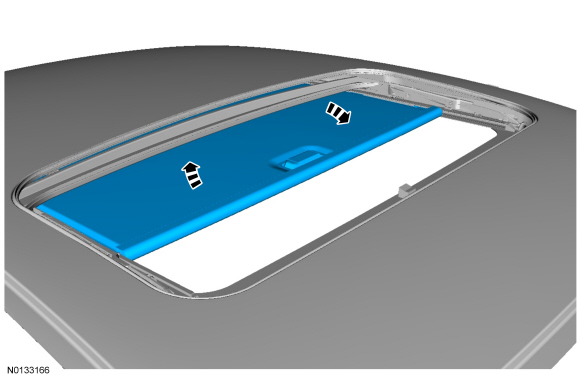

2. Slide the roof opening panel shield forward halfway and disengage one of the roof opening panel shade assembly guide feet.

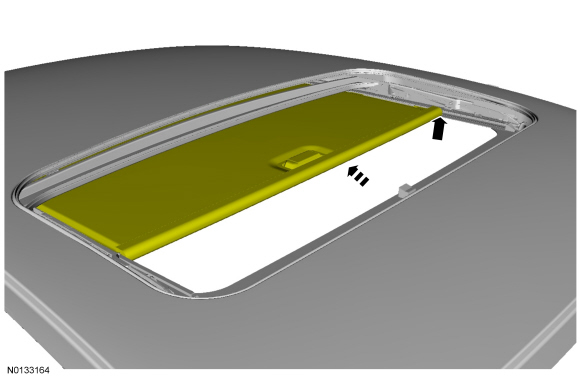

- Lift the front portion of the roof opening panel shade assembly upward at center until able to disengage one of the front guide feet.






3. With one of the guide feet released, carefully rotate the roof opening panel shade assembly in a clockwise manner to disengage the remaining guide feet and remove the shade assembly.





Installation

1. To install, reverse the removal procedure.
