Handles, Locks, Latches and Entry Systems - with Door Modules (with Window One-touch Up), without Intelligent Access (IA)

Symptom Chart(s)

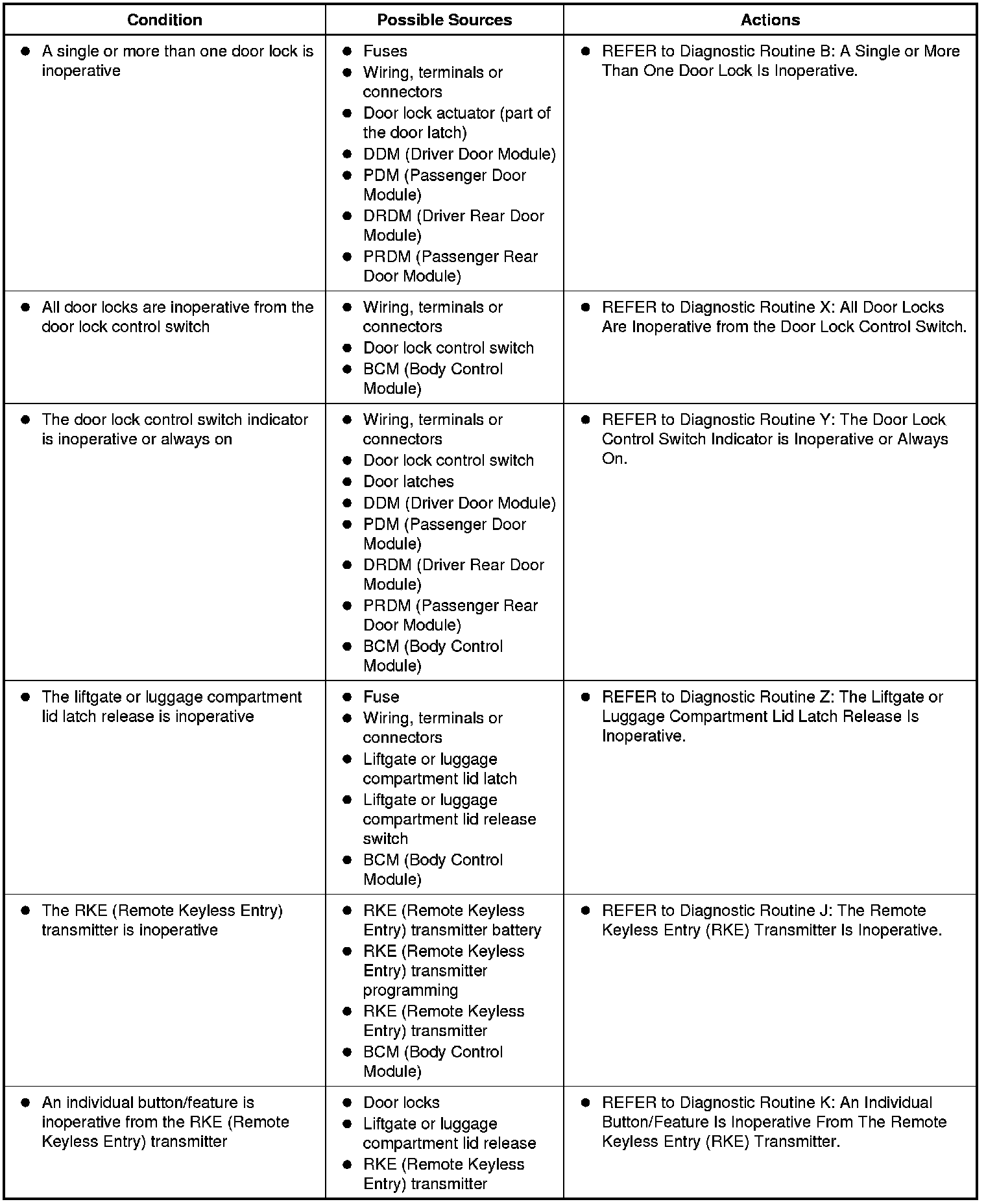

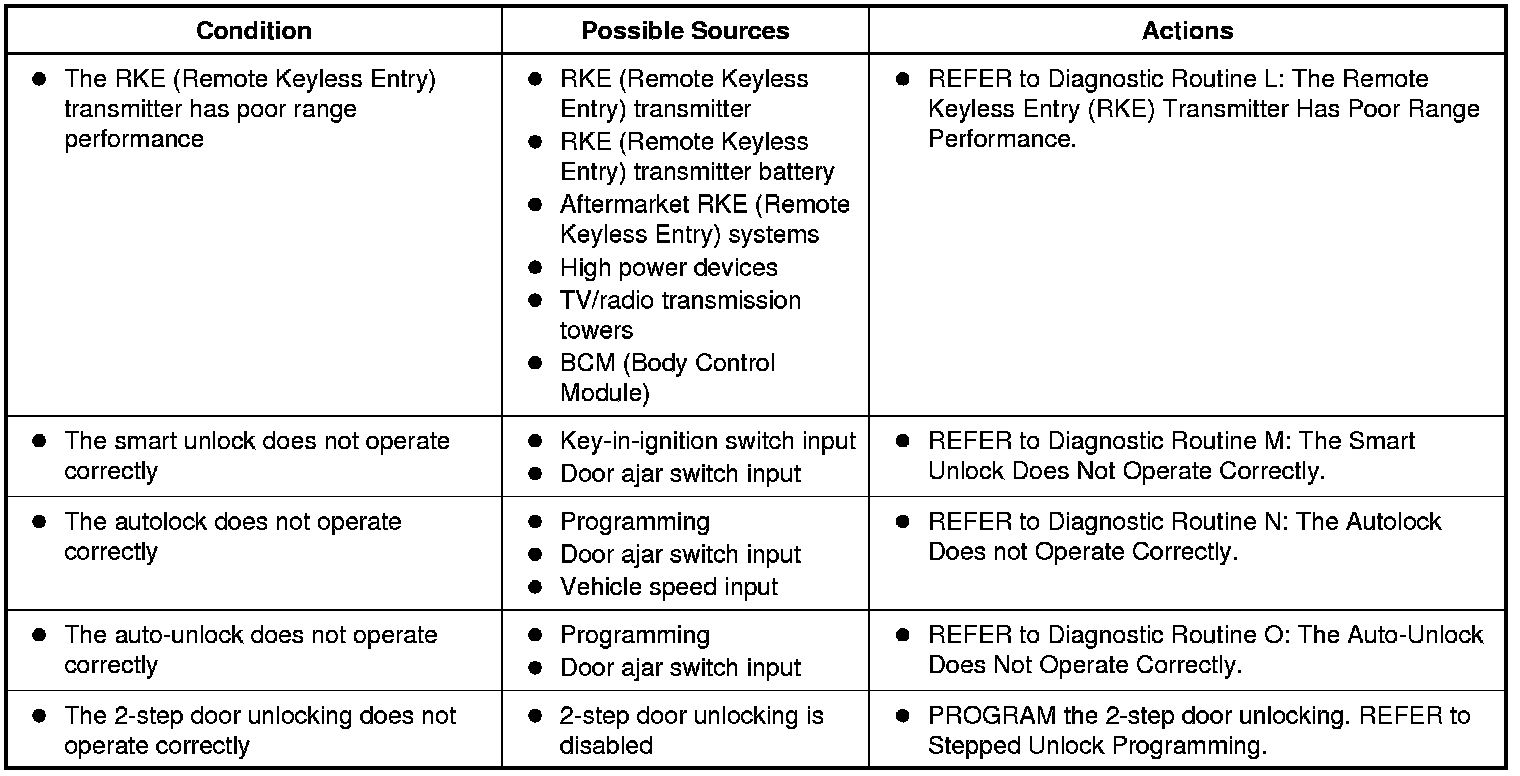

Symptom Chart: Handles, Locks, Latches and Entry Systems - Electrical

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information about these practices.

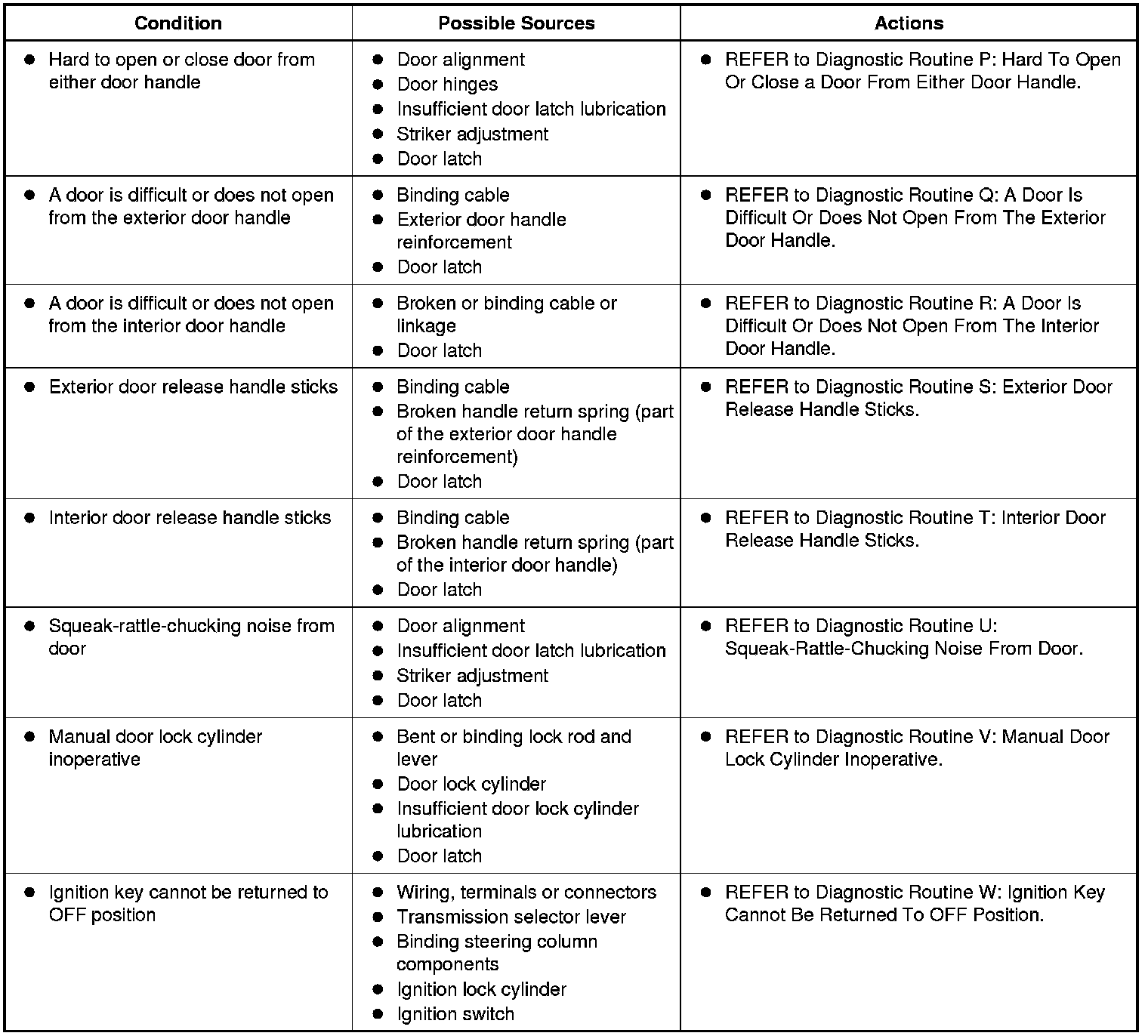

Symptom Chart: Handles, Locks, Latches and Entry Systems - Mechanical

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information about these practices.
