Diagnostic Routine M

Diagnostic Routine M

Diagnostic Overview

The Smart Unlock Does Not Operate Correctly

Normal Operations and Fault Conditions

REFER to Smart Unlock .

Pinpoint Test

1. CHECK THE DOOR LOCK OPERATION

1. Check the operation of the door locks from the door lock control switch.

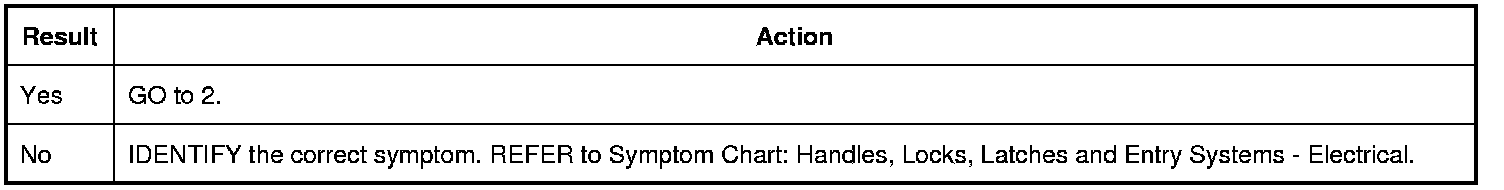

Do all of the doors lock and unlock?






2. CHECK THE DOOR AJAR INPUT

1. Open and close the doors while checking the courtesy lamp operation.

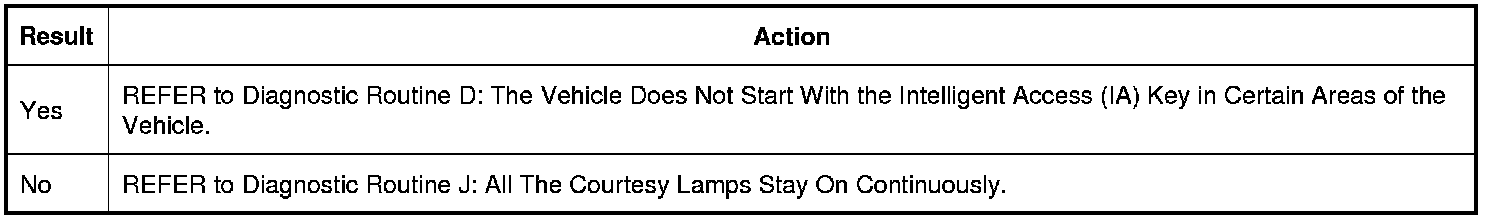

Do the courtesy lamps operate correctly?
