Diagnostic Routine K

Diagnostic Routine K

Diagnostic Overview

An Individual Button/Feature Is Inoperative From The Remote Keyless Entry (RKE) Transmitter

Normal Operations and Fault Conditions

REFER to Remote Keyless Entry (RKE) .

Visual Inspection and Diagnostic Pre-checks

- IA (Intelligent Access) key

Pinpoint Test

1. VERIFY THE DOOR LOCK OPERATION

1. Press the door lock control switch twice while observing the door lock operation.

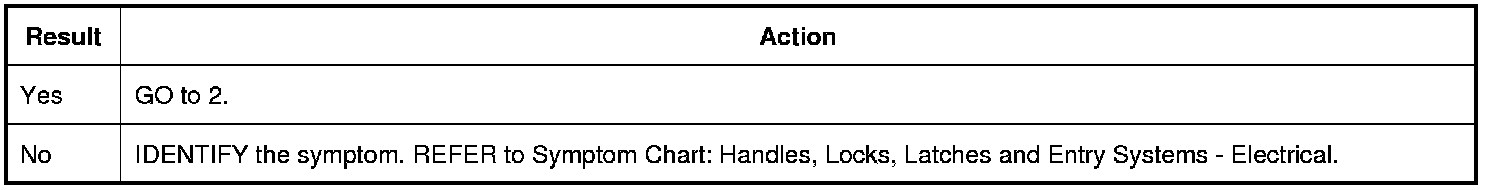

Do the door locks operate correctly?






2. VERIFY THE LIFTGATE OR LUGGAGE COMPARTMENT LID RELEASE OPERATION

1. Press the liftgate or luggage compartment lid release button on the liftgate or luggage compartment lid.

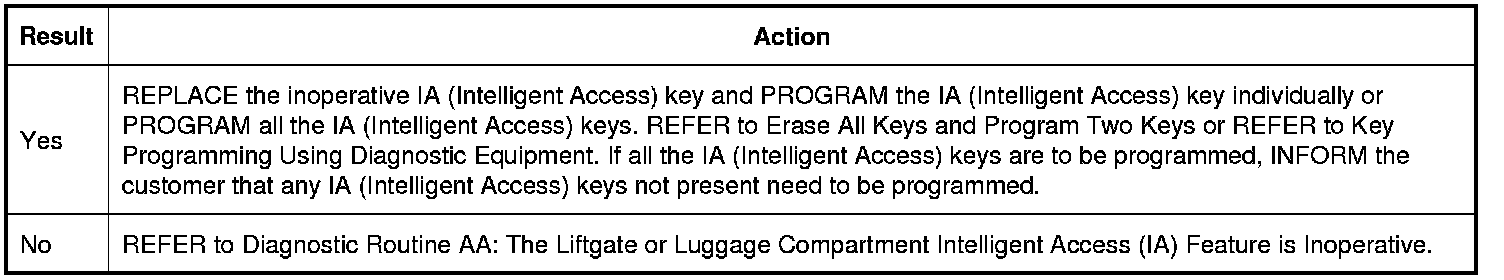

Does the liftgate or luggage compartment lid open?
