Diagnostic Overview

An Individual Button/Feature Is Inoperative From The Remote Keyless Entry (RKE) Transmitter

Normal Operations and Fault Conditions

The remote locking and unlocking of the doors, releasing the liftgate or luggage compartment lid latch, or activation of the panic alarm is accomplished by the BCM (Body Control Module) receiving a command message from the RKE (Remote Keyless Entry) transmitter. The BCM (Body Control Module) processes the command and provides the appropriate output.

The BCM (Body Control Module) disables the panic feature if the ignition key is in any position other than OFF or LOCK.

Visual Inspection and Diagnostic Pre-checks

- Inspect the RKE (Remote Keyless Entry) transmitter.

Pinpoint Test

1. VERIFY THE DOOR LOCK OPERATION

1. Press the door lock control switch twice while observing the door lock operation.

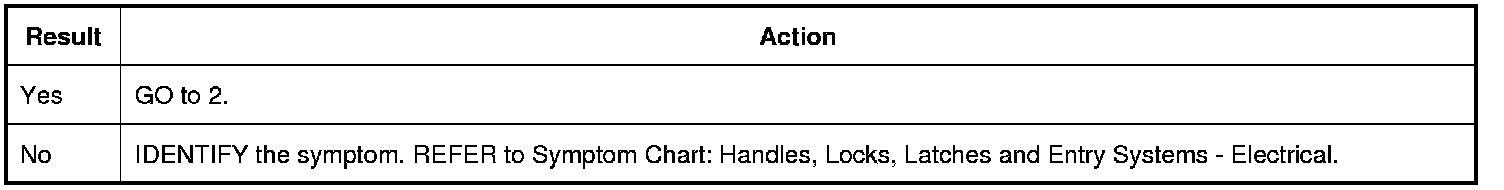

Do the door locks operate correctly?






2. VERIFY THE HORN OPERATION USING THE HORN OUTPUT (HORN) PID (Parameter Identification)

1. Using a scan tool, view BCM (Body Control Module) PIDs (Parameter Identifications).

2. Select the BCM (Body Control Module) PID (Parameter Identification) HORN and active command the horn on.

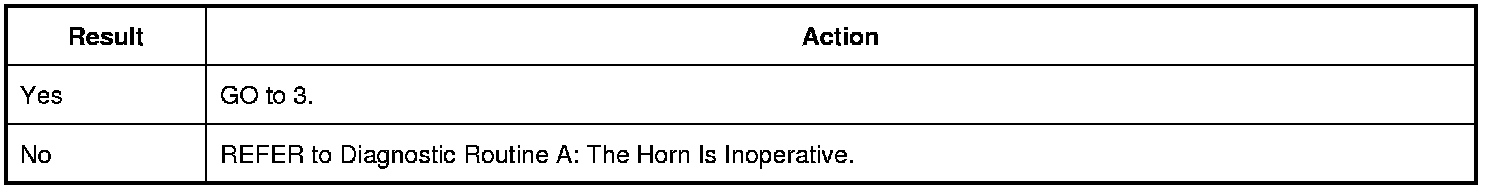

Does the horn sound when commanded on?






3. VERIFY THE HAZARD LAMP OPERATION

1. Place the hazard switch in the ON position.

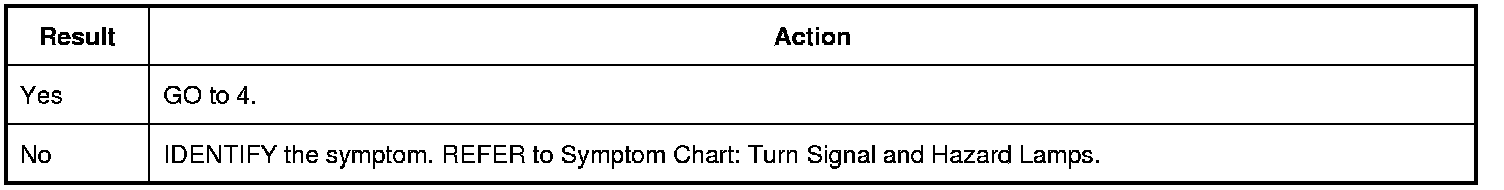

Do the hazard lamps operate correctly?






4. VERIFY THE LIFTGATE OR LUGGAGE COMPARTMENT LID RELEASE OPERATION

1. Press the liftgate or luggage compartment lid release button on the liftgate or luggage compartment lid.

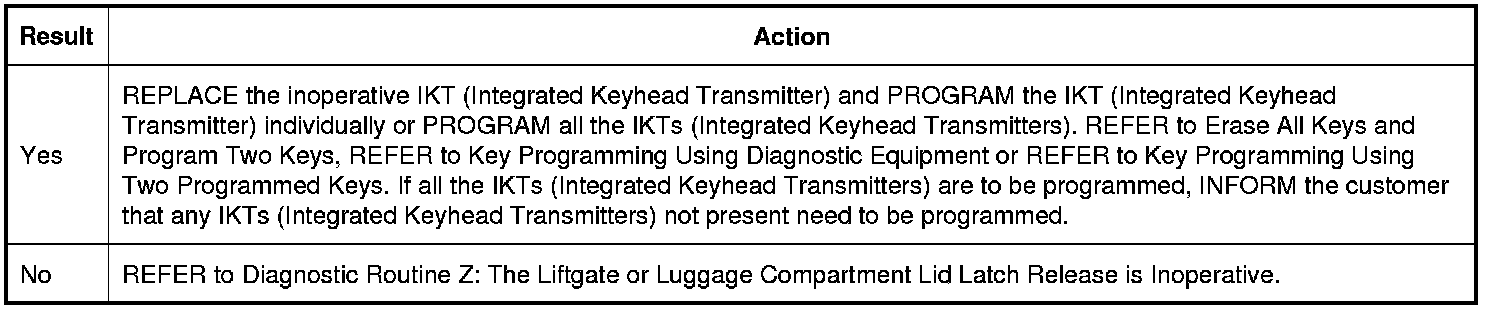

Does the liftgate or luggage compartment lid open?
