C-Pillar Trim Panel - Lower

C-Pillar Trim Panel - Lower

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

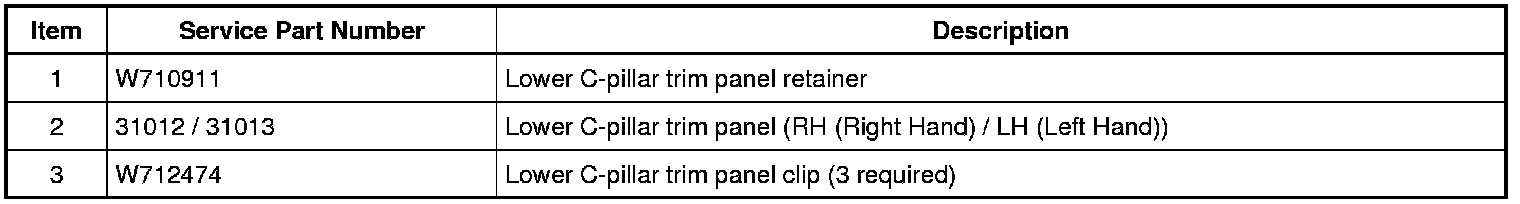

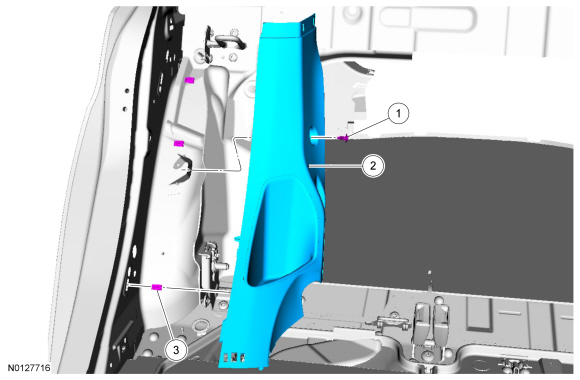

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the rear door scuff plate trim panel. REFER to Scuff Plate Trim Panel - Rear .

2. Remove the middle C-pillar trim panel. REFER to C-Pillar Trim Panel - Middle, 4-Door Sedan or REFER to C-Pillar Trim Panel - Middle, 5-Door Hatchback .

3. Remove the lower C-Pillar trim panel.

1. Position aside the rear door weatherstrip from around the lower C-pillar trim panel.

2. Remove the lower C-pillar trim panel retainer.

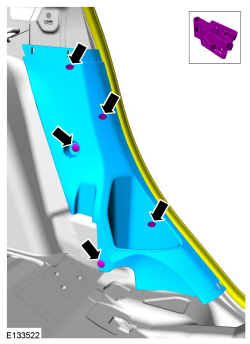

3. Release the lower C-pillar trim panel clips and remove the lower C-pillar trim panel.






Installation

1. To install, reverse the removal procedure.
