A-Pillar Trim Panel

A-Pillar Trim Panel

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

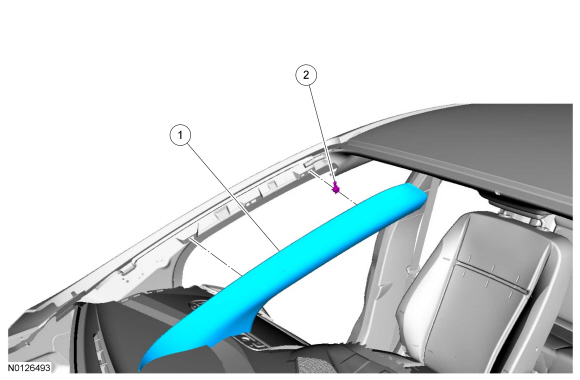

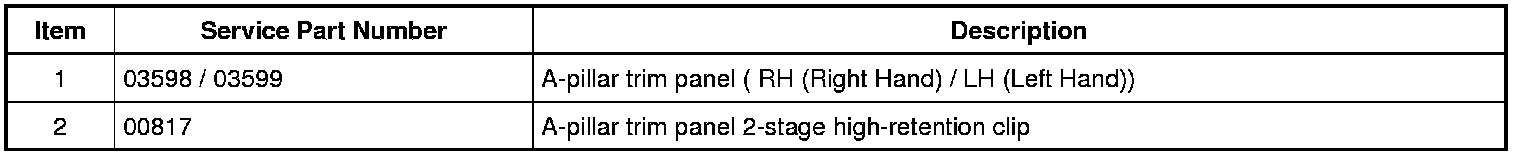

Exploded View

RH (Right Hand) shown LH (Left Hand) similar










Removal

NOTE: Removal steps in this procedure may contain installation details.

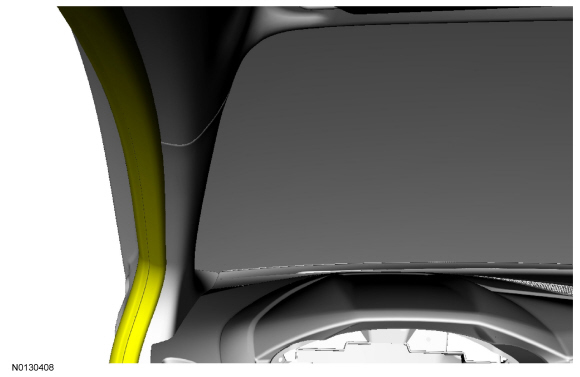

1. Position aside the front door weatherstrip.





2. NOTE: The A-pillar trim panel is equipped with a 2-stage high-retention feature that is designed to prevent the A-pillar trim panel from striking the occupant in the event of a side air curtain deployment. The A-pillar trim panel 2-stage high-retention clip must be replaced when the A-pillar trim panel is serviced.
Remove the A-pillar trim panel.

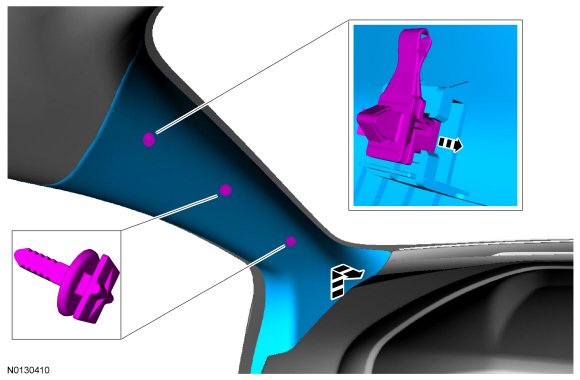

1. Release the 2 A-pillar trim panel clips and release the A-pillar trim panel 2-stage high-retention clip from the trim panel.

2. Remove the A-pillar trim panel by lifting up and out.






Installation

1. To install, reverse the removal procedure.

- Install a new A-pillar trim panel 2-stage high-retention retaining clip onto the A-pillar trim panel.
