Scuff Plate Trim Panel - Rear

Scuff Plate Trim Panel - Rear

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

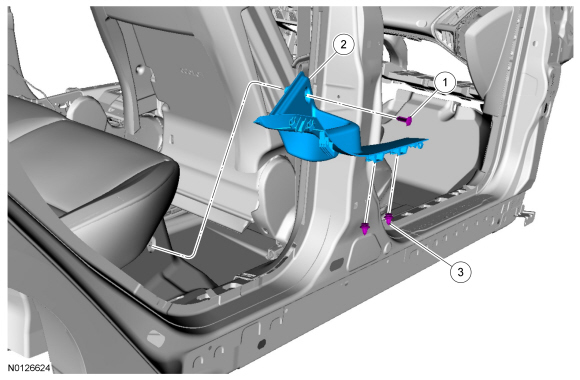

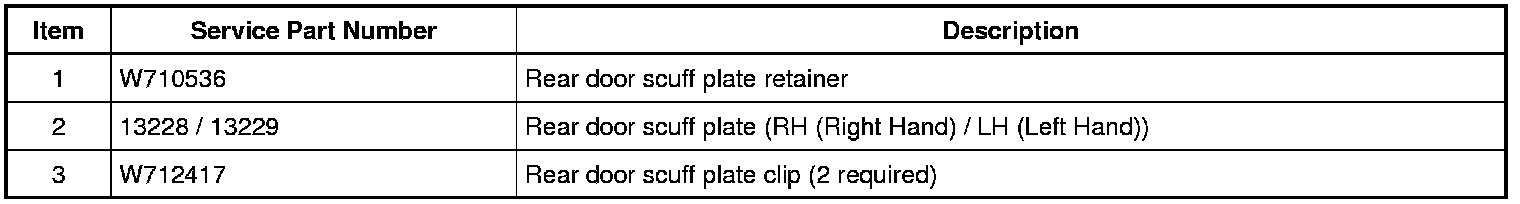

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the rear door scuff plate trim panel.

1. Position aside the rear door weatherstrip from around the rear door scuff plate.

2. Remove the rear door scuff plate trim panel push pin retainer.

3. Release the 2 rear door scuff plate trim panel clips and remove the rear door scuff plate.






Installation

1. To install, reverse the removal procedure.
