Scuff Plate Trim Panel - 5-Door Hatchback, Luggage Compartment

Scuff Plate Trim Panel - 5-Door Hatchback, Luggage Compartment

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

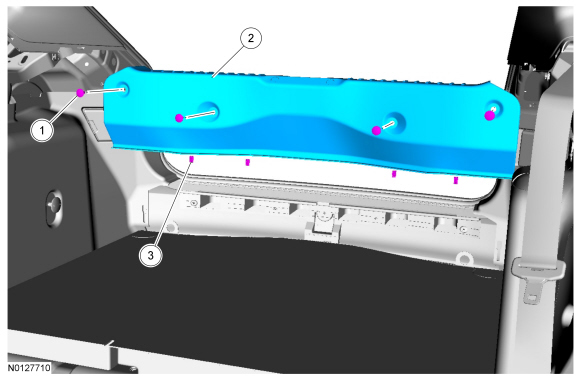

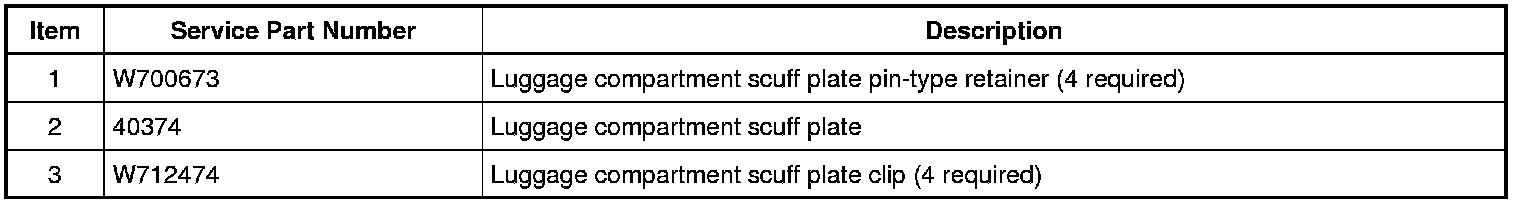

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the spare tire cover.





2. Remove the luggage compartment scuff plate trim panel.

1. Position aside the luggage compartment weatherstrip from around the scuff plate trim panel.

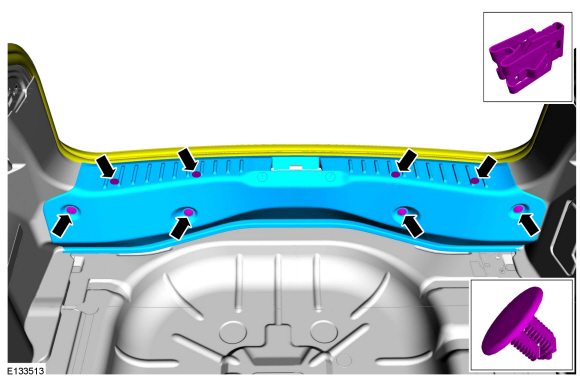

2. Remove the 4 scuff plate trim panel pin-type retainers.

3. Release the 4 scuff plate trim panel clips and remove the scuff plate trim panel.






Installation

1. To install, reverse the removal procedure.
