Instrument Panel - Exploded View




Instrument Panel - Exploded View

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Exploded View

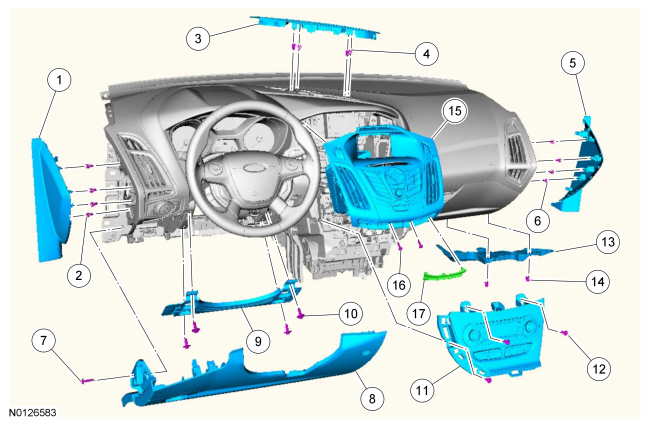

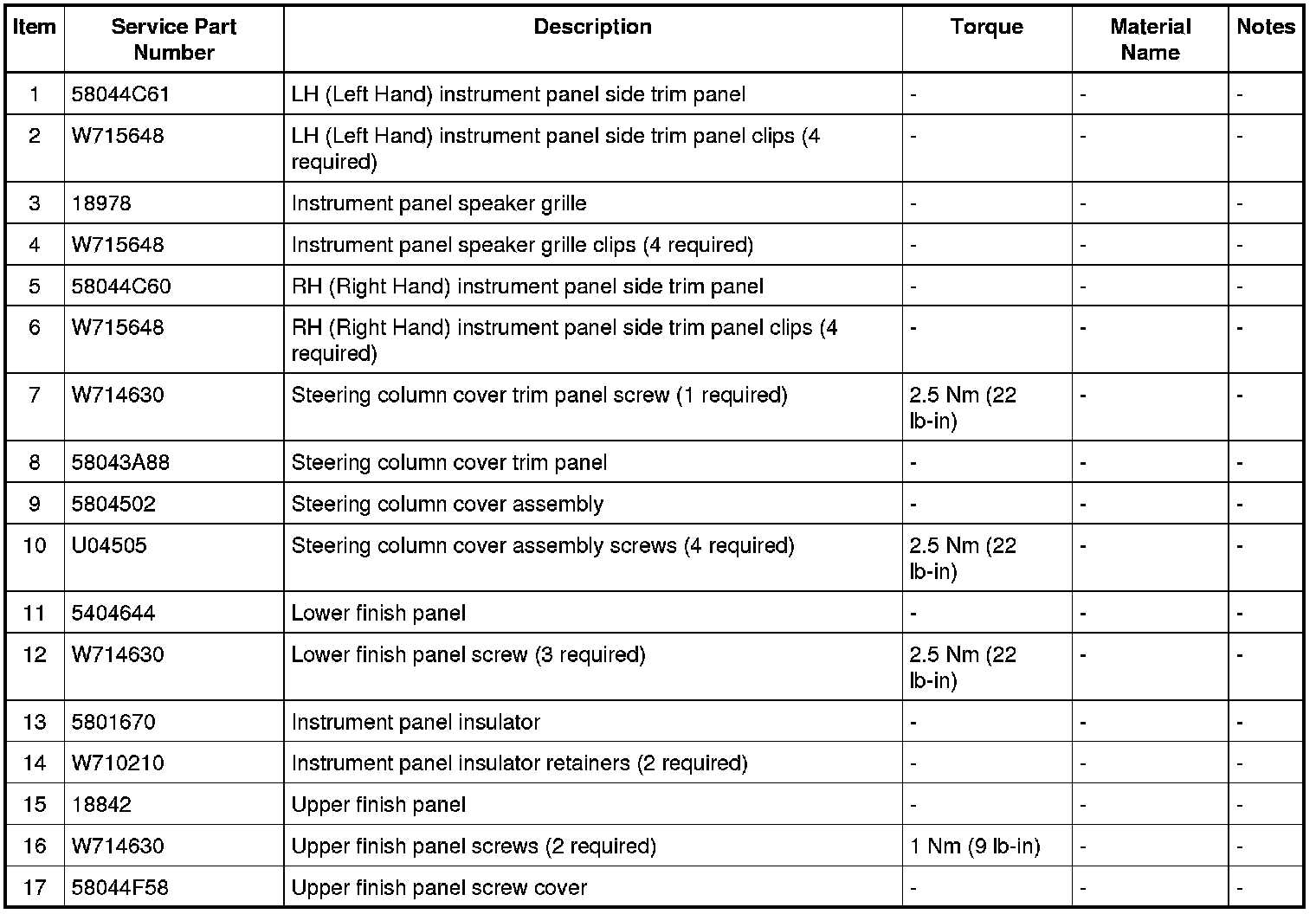

Instrument Panel

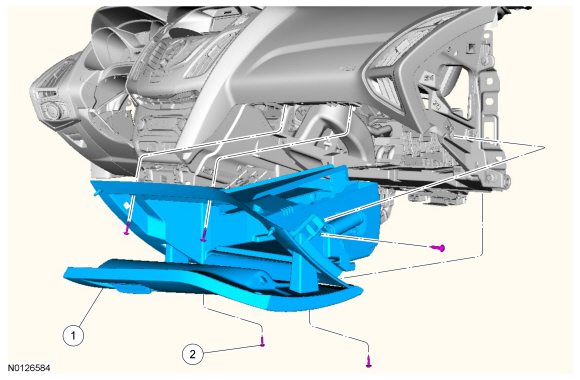

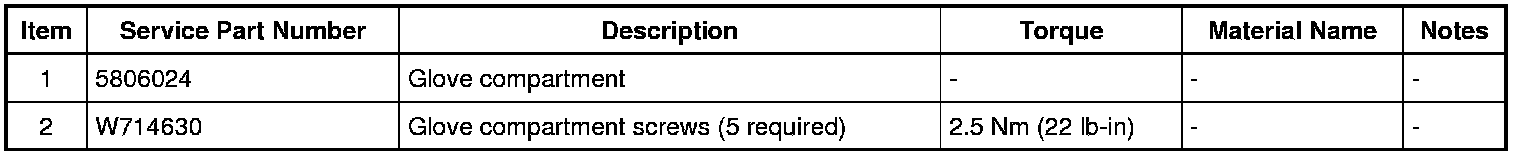

Glove Compartment

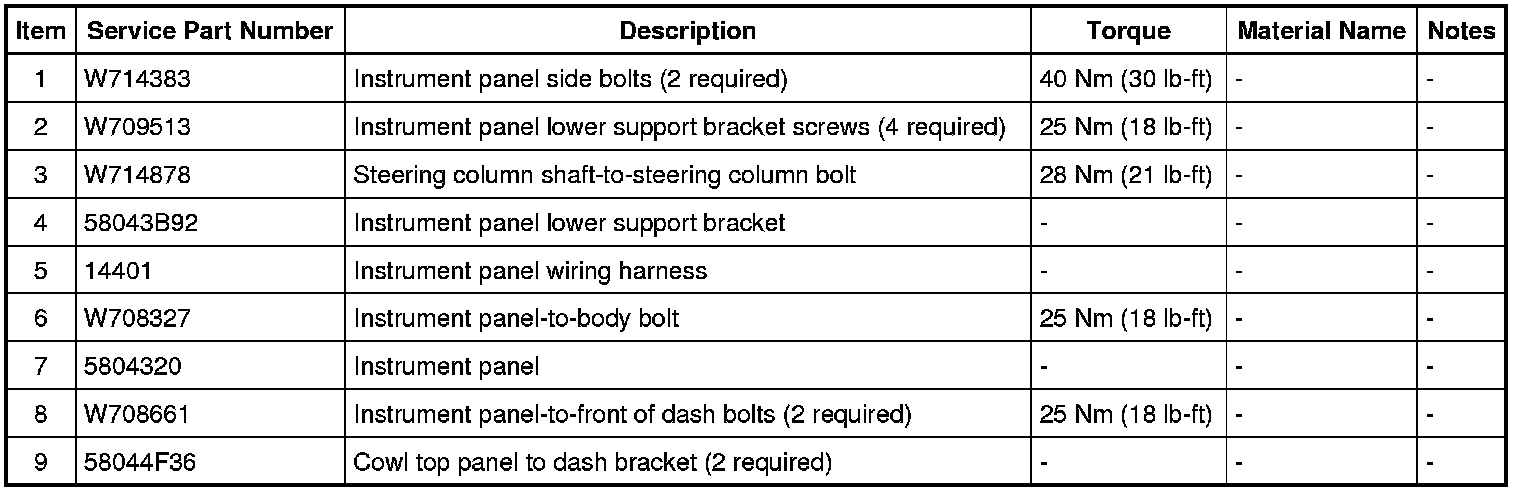

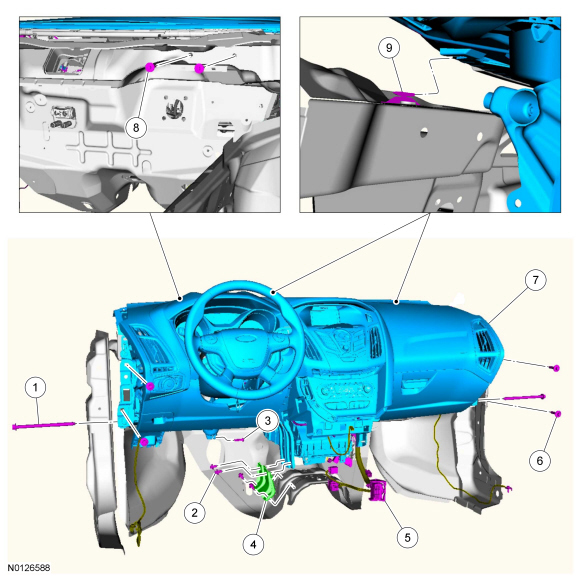

Instrument Panel Fasteners
