Console - Overhead

Console - Overhead

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

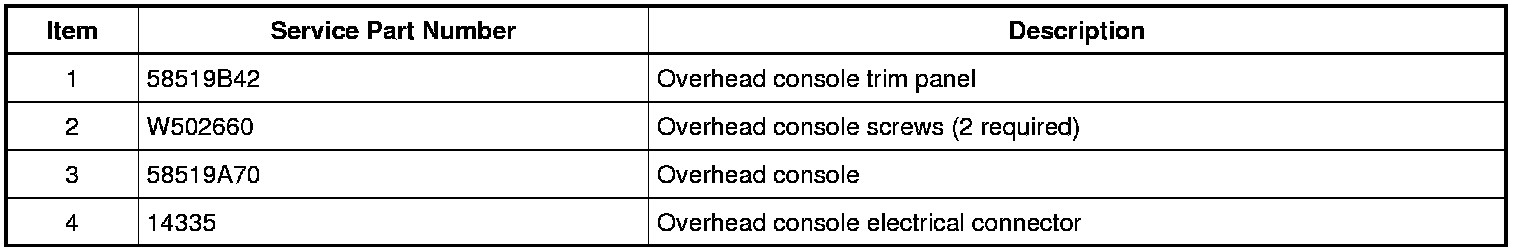

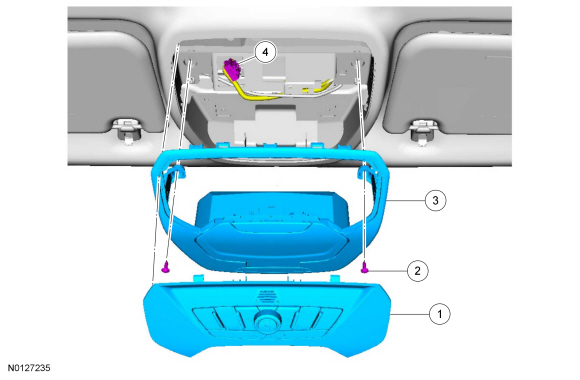

Exploded View










Removal

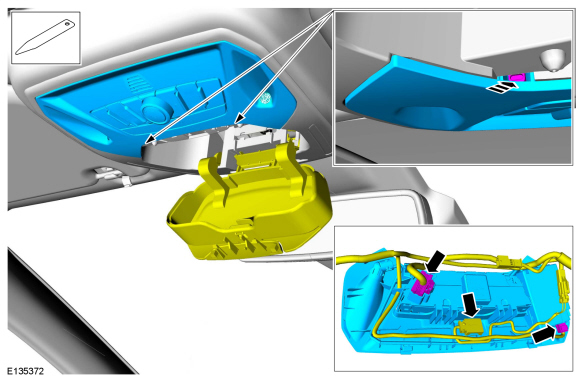

1. Open the sunglass bin and insert the interior trim removal tool in the openings to release the clips. Remove overhead console trim panel.

- Disconnect the electrical connectors.

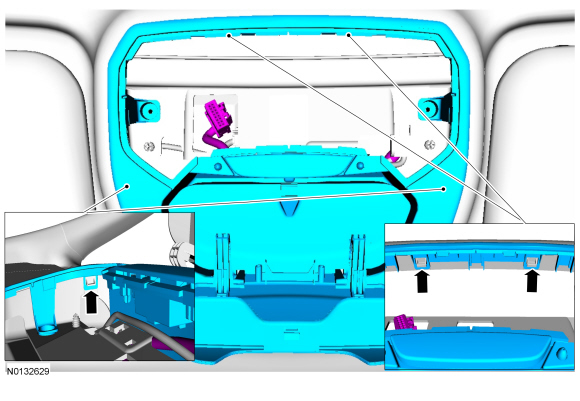

2. Release the 2 rear and 2 side retainers and remove the overhead console.





3. Remove the 2 overhead console bracket screws, disconnect the electrical connector and detach the 2 electrical harness pushpins. Remove the overhead console bracket from the headliner.





Installation

1. To install, reverse the removal procedure.
