Console - Front, Floor

Console - Front, Floor

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

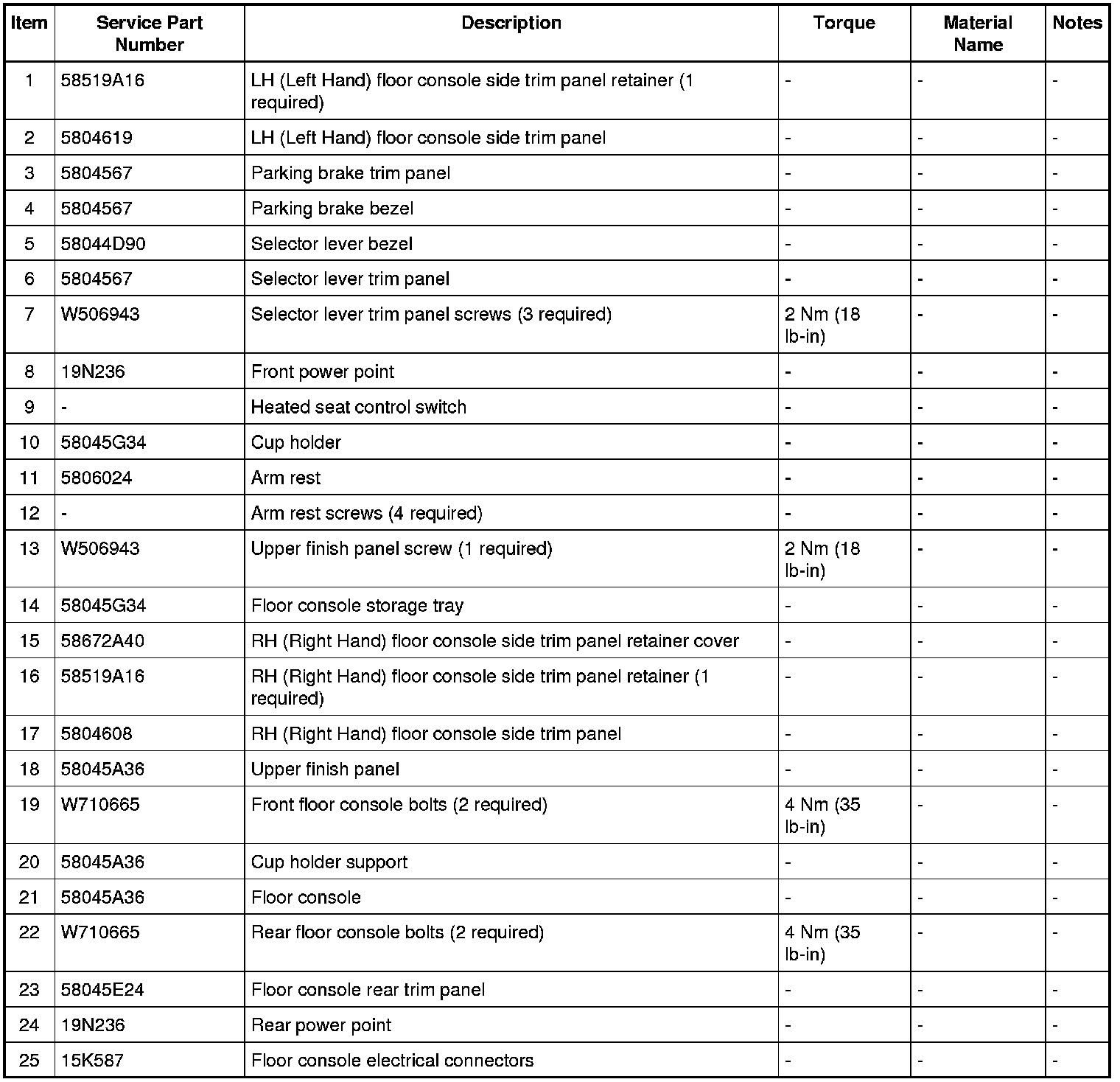

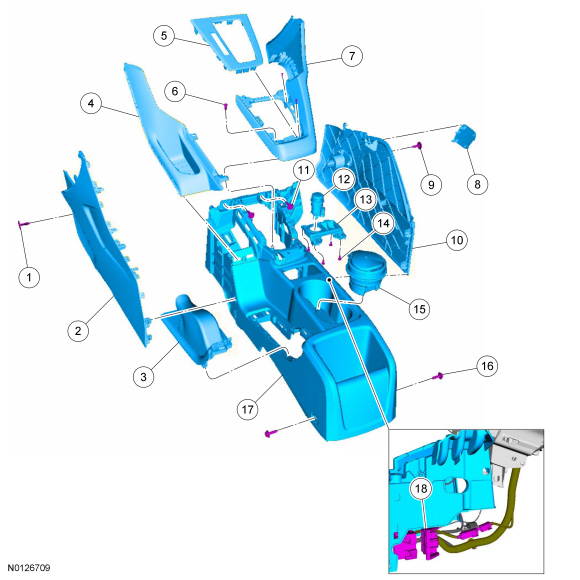

Exploded View

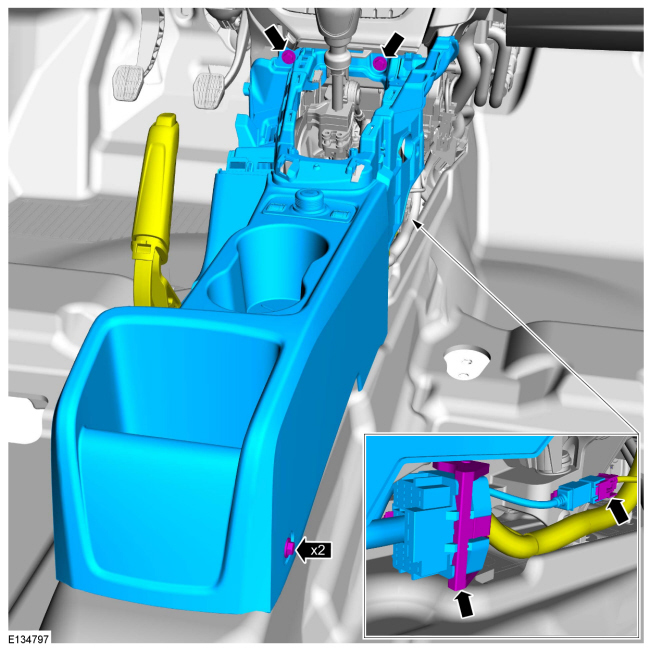

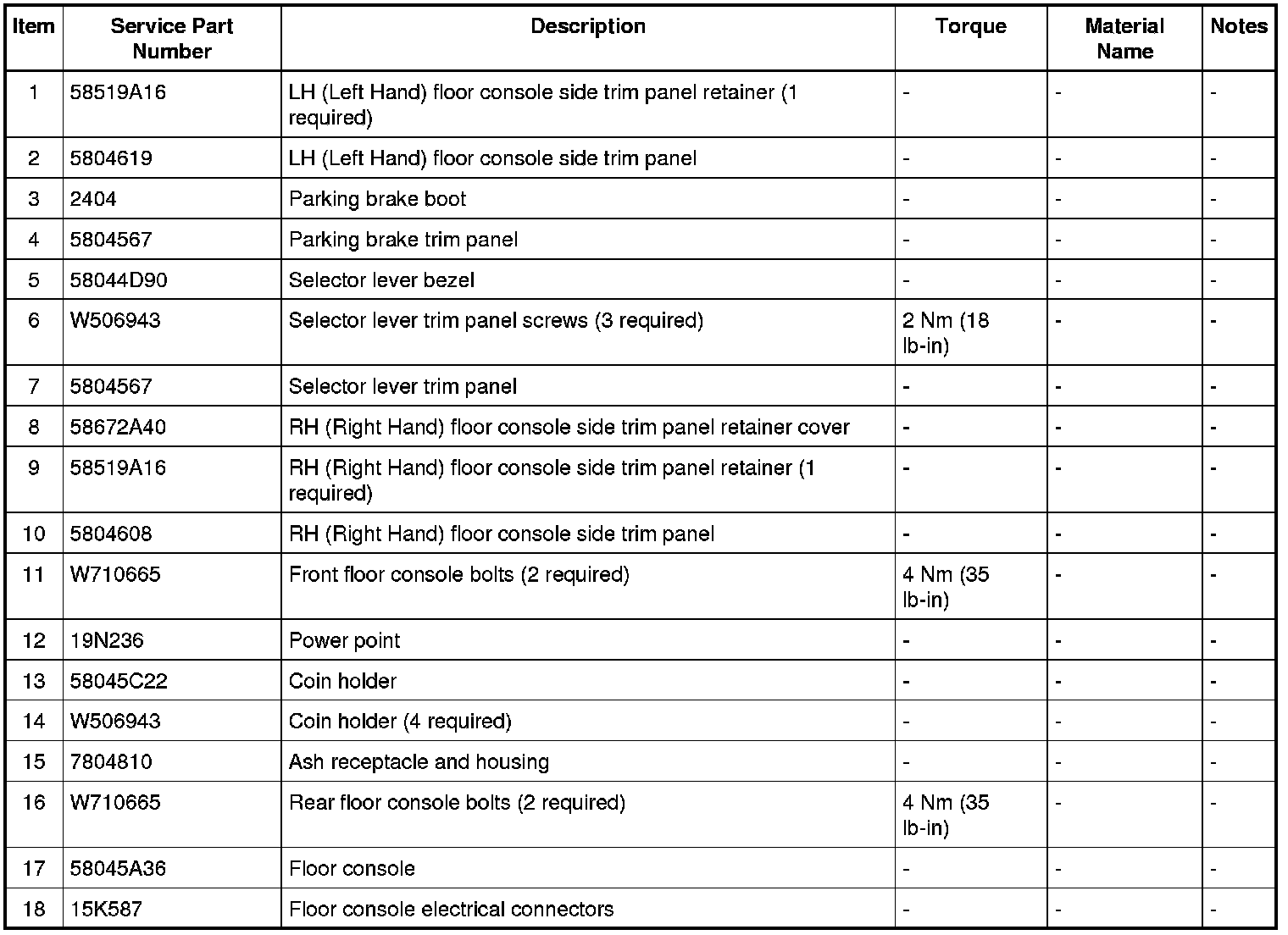

Closed Bin Floor Console

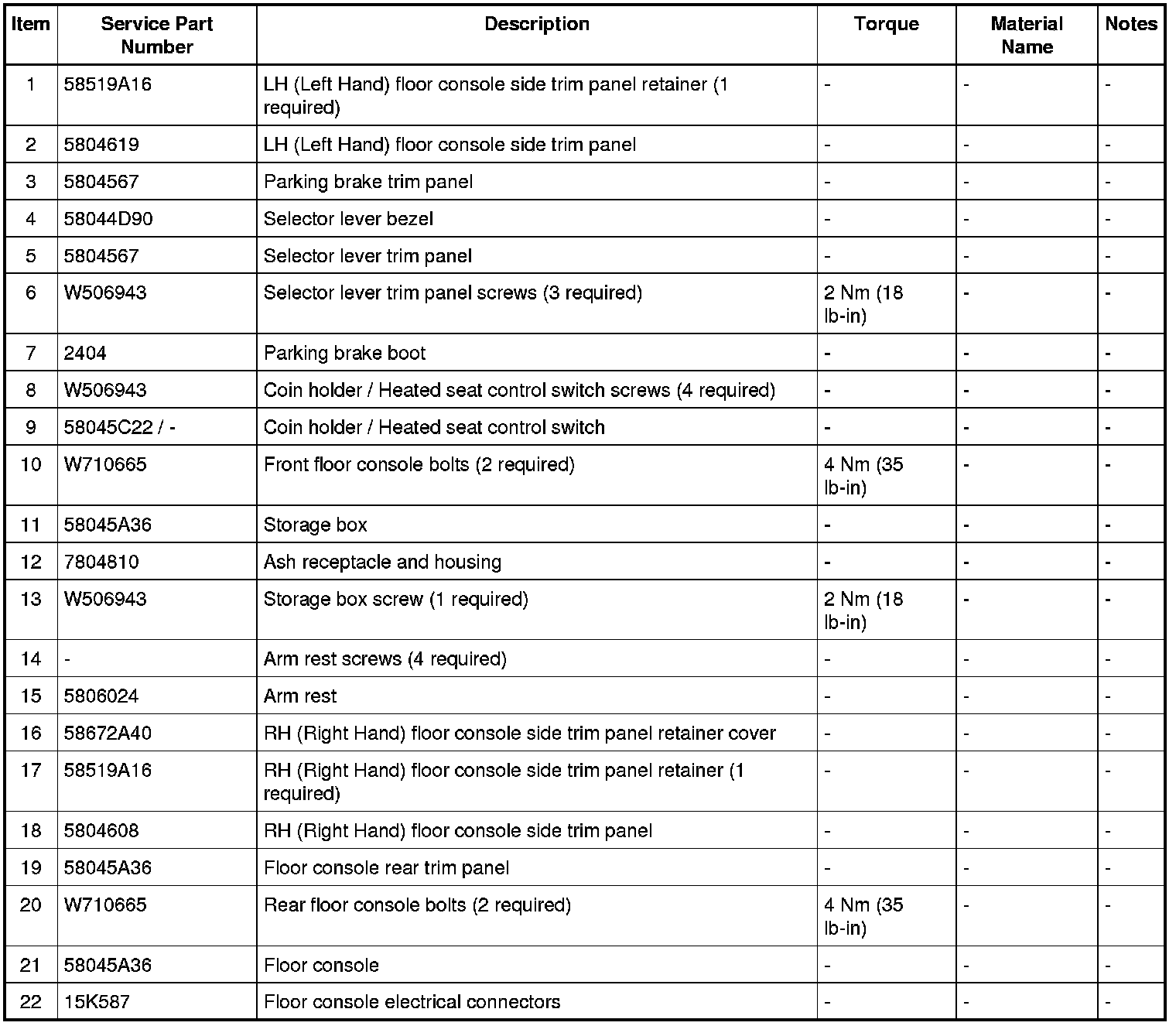

Cubby Box Floor Console











Consolette Floor Console

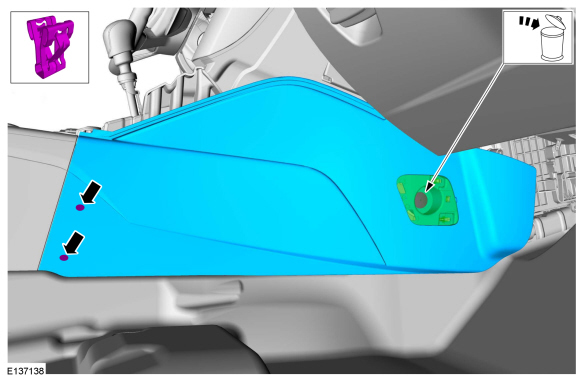

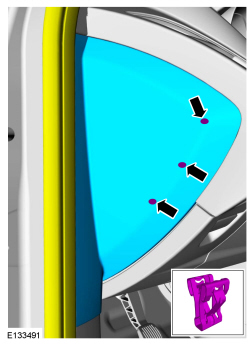

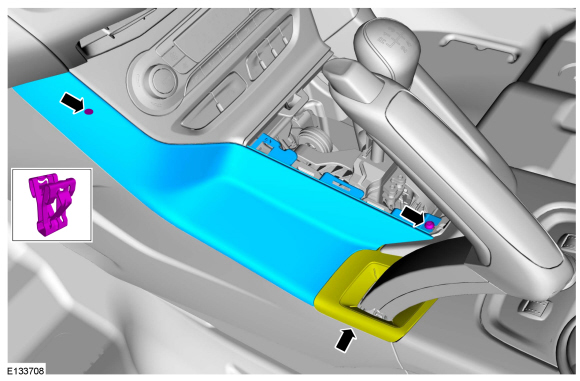

Removal

NOTE: Removal steps in this procedure may contain installation details.

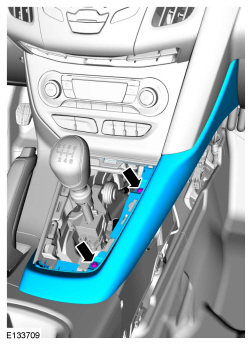

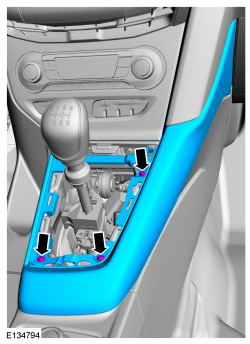

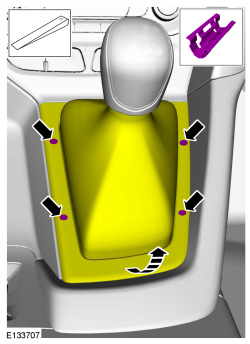

1. Vehicles with manual transmission.

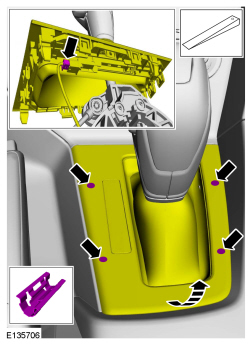

2. Vehicles with automatic transmission.

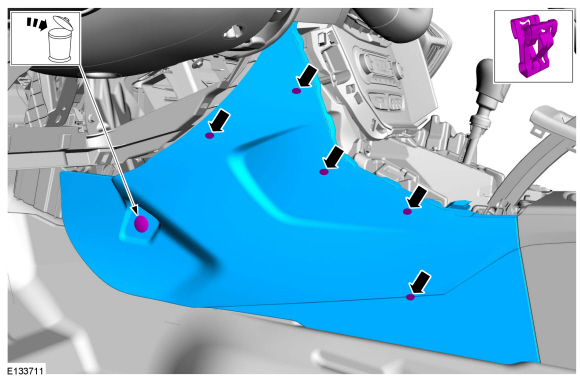

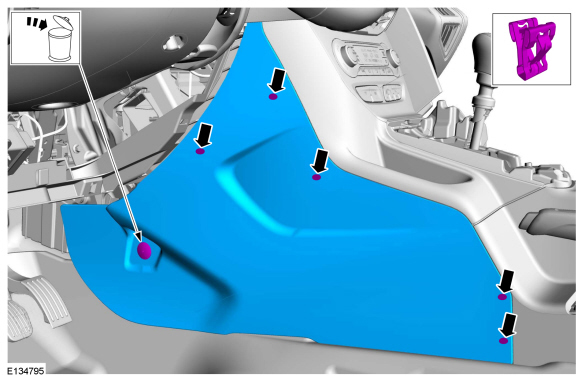

3.

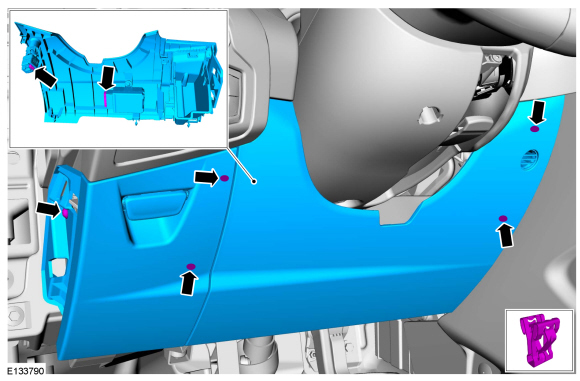

4.

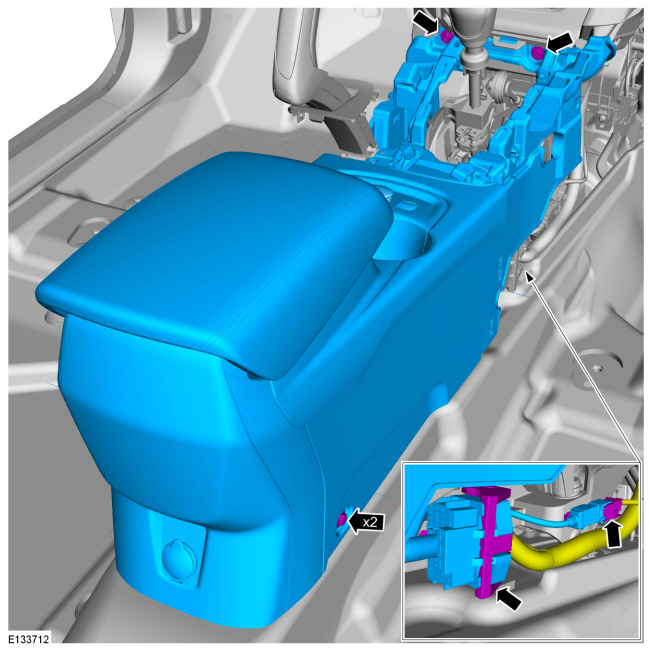

5. Cubby Box front floor console.





6. Closed Bin front floor console.
- 2 Nm (18 lb-in)





7. Closed Bin front floor console.





8. Closed Bin front floor console.





9. Cubby Box front floor console.





10. Cubby Box front floor console.
- 2 Nm (18 lb-in)





11. Cubby Box front floor console.





12. All





13. Cubby Box front floor console.
- 4 Nm (35 lb-in)





14. Closed Bin front floor console.
- 4 Nm (35 lb-in)





Installation

1. To install, reverse the removal procedure.
