Luggage Compartment Lid Latch




Luggage Compartment Lid Latch

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

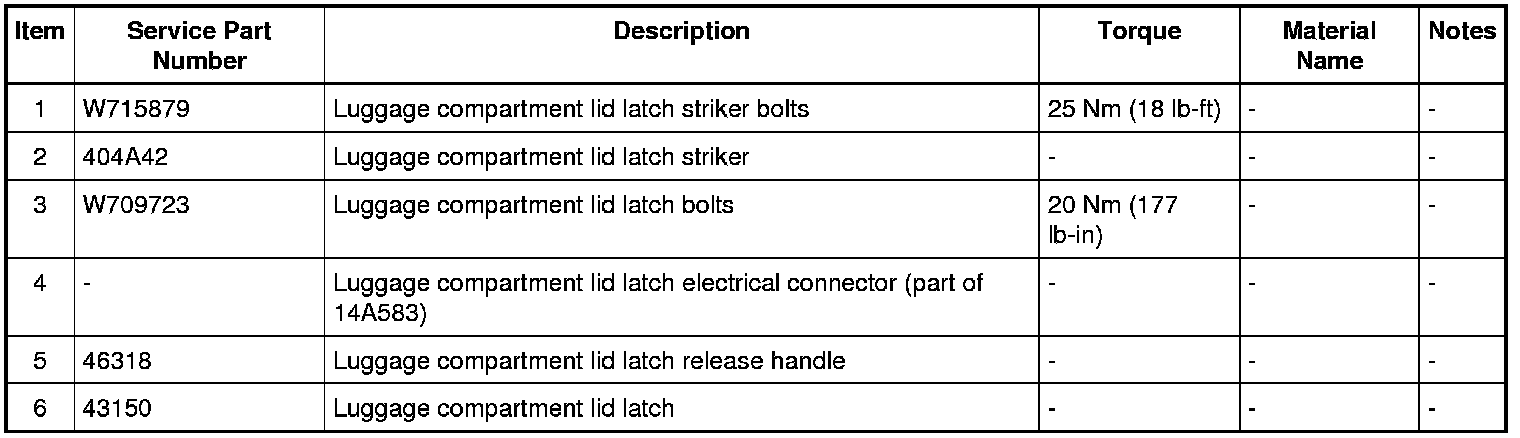

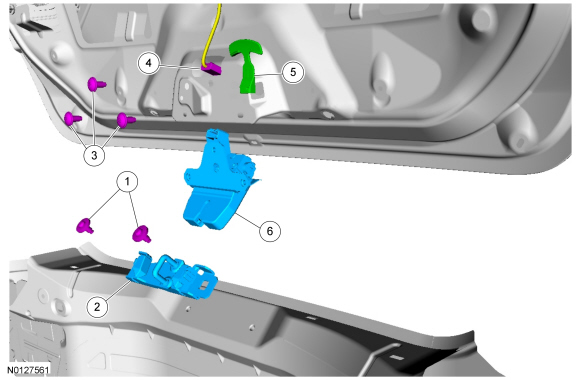

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

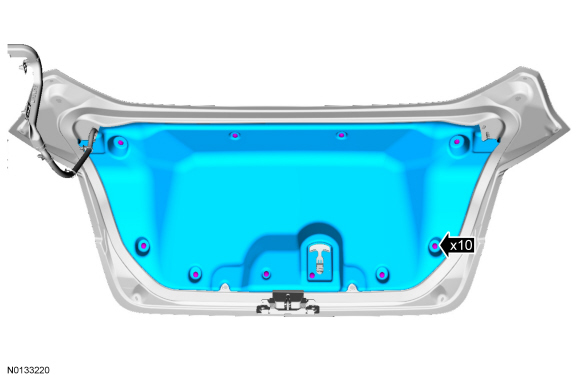

1. Remove 10 pin-type retainers and the luggage compartment trim panel.

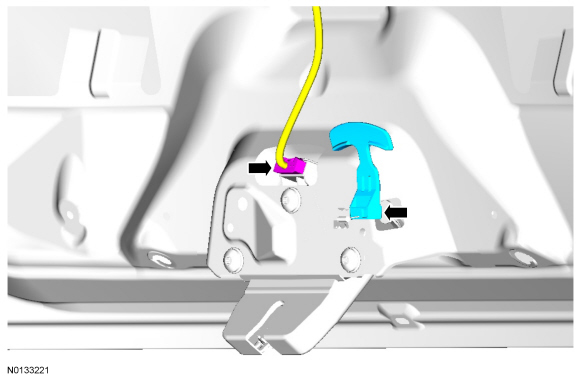

2. Disconnect the luggage compartment lid electrical connector and the luggage compartment lid latch release handle.

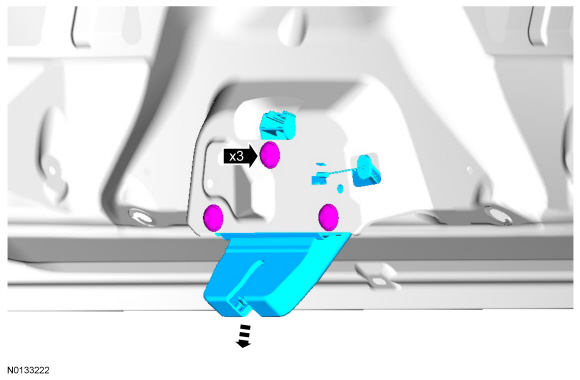

3. Remove the luggage compartment lid latch.
- 20 Nm (177 lb-in)





Installation

1. To install, reverse the removal procedure.
