Latch Lubrication

Latch Lubrication

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

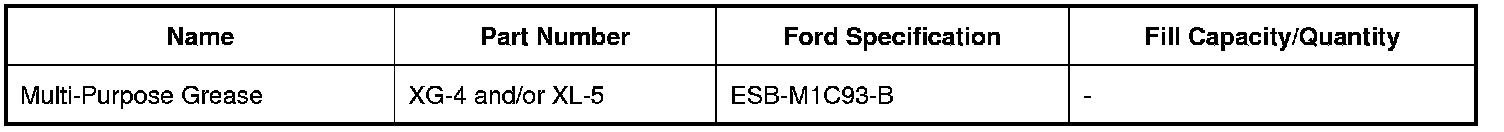

Material(s)






General Procedure

1. Open the door.

2. Using a flat-blade screwdriver, fully close the latch (2 clicks).





3. NOTICE: Do not over lubricate the latch. Using excessive grease may damage the internal lock motor.

Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.





4. Open the latch using either the interior or exterior door handle.

5. Open and close the door several times to circulate the lubricant inside the latch.

6. Wipe off any excess grease.
