Trunk / Liftgate Interior Trim Panel: Service and Repair

Liftgate Trim Panel

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Exploded View

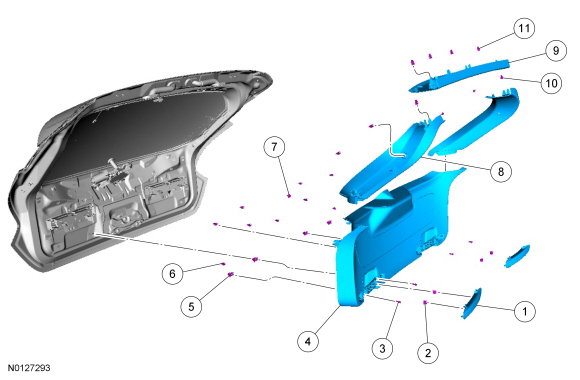

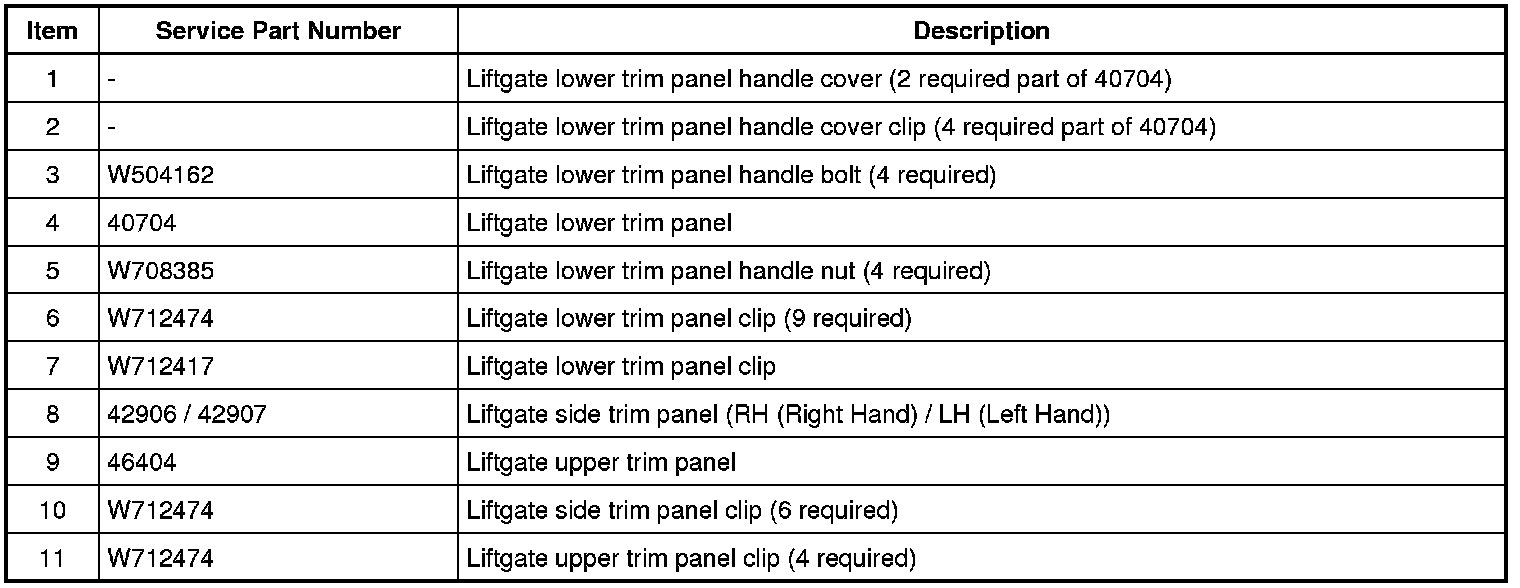

Liftgate Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the 2 liftgate handle covers.

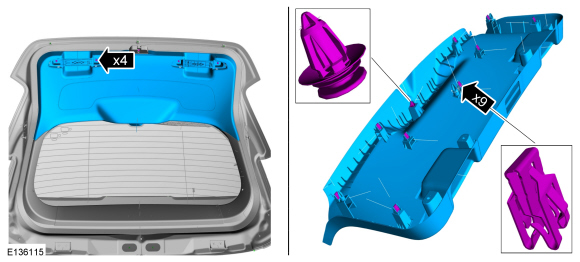

2. Remove the lower liftgate trim panel.

1. Remove the 4 liftgate handle bolts.

2. Release the 9 clips and remove the lower liftgate trim panel.

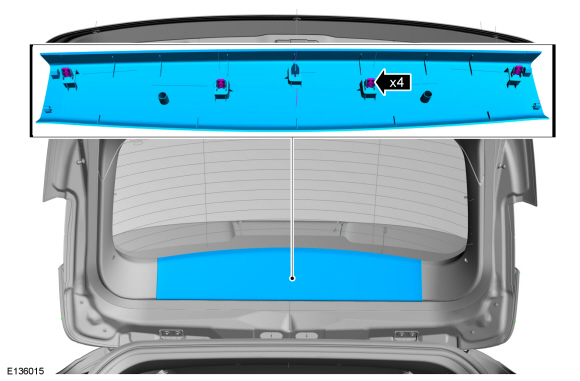

3. Release the 4 clips and remove the upper liftgate trim panel.





4. Release the 3 clips and remove the side liftgate trim panel.





Installation

1. To install, reverse the removal procedure.
