Liftgate Hinge

Liftgate Hinge

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Exploded View

REFER to Liftgate for exploded view information.

Removal

NOTE:The removal steps in this procedure may include installation details.

1. Remove the liftgate. REFER to Liftgate .

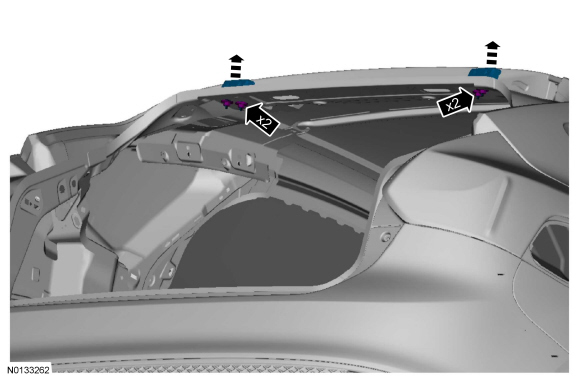

2. Remove the liftgate hinge-to-body nuts and remove the hinge.
- 30 Nm (22 lb-ft)





Installation

1. To install, reverse the removal procedure.
