Handles, Locks, Latches and Entry Systems - with Door Modules (with Window One-touch Up), without Intelligent Access (IA)

Hood Latch

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

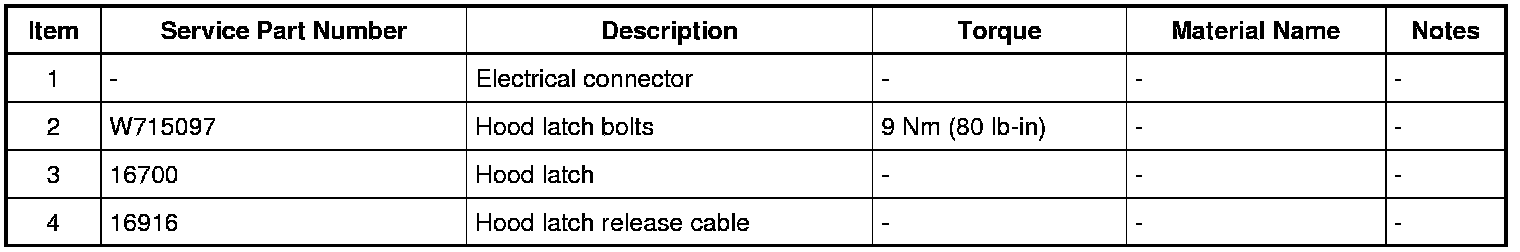

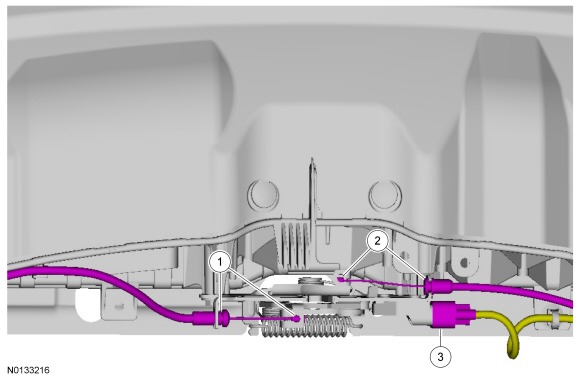

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1.





2.
- 9 Nm (80 lb-in)





Installation

1. To install, reverse the removal procedure.
