Hood: Adjustments

Hood Alignment

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

General Procedure

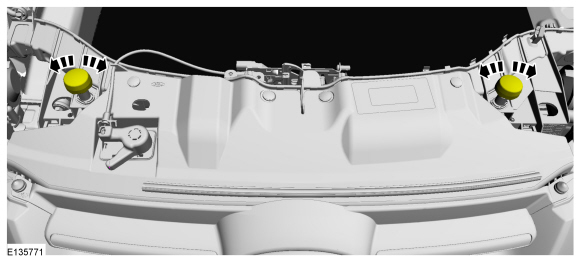

1. For left-to-right and front-to-rear adjustment.





2. Adjust the hood to specification. REFER to Body Dimensions .

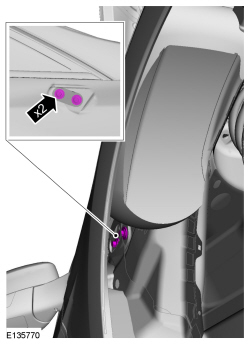

3. For left-to-right and front-to-rear adjustment.
- 11 Nm (97 lb-in)





4. For height adjustment, remove the front fender splash shield. REFER to Fender Splash Shield .

5. For height adjustment.





6. For height adjustment.





7. Adjust the hood to specification. REFER to Body Dimensions .

8. For height adjustment.
- 25 Nm (18 lb-ft)
