Rear Door: Service and Repair

Door - Rear

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

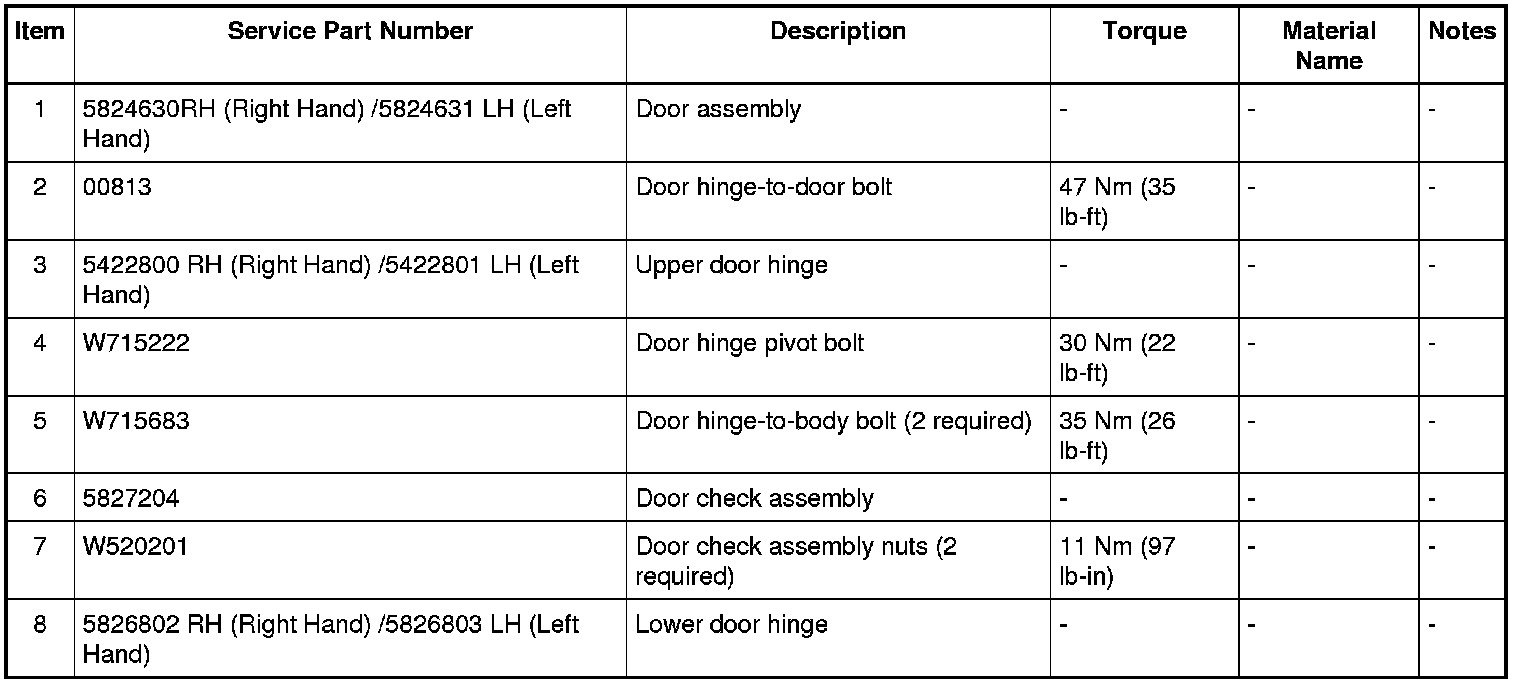

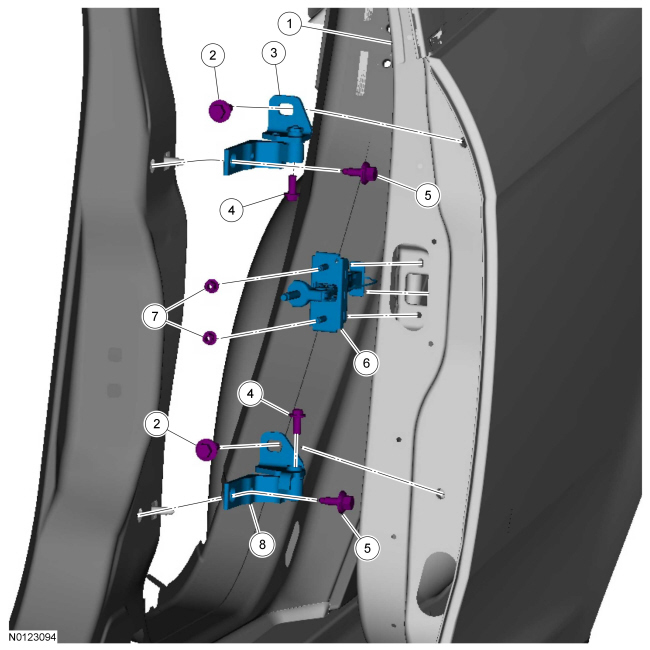

Exploded View









Removal

NOTE: The removal steps in this procedure may include installation details.

NOTE: LH (Left Hand) side shown, RH (Right Hand) side similar.

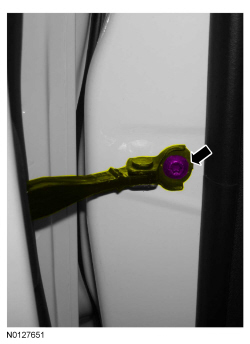

1. Remove the door check bolt from the B-pillar and position aside the door check.
- 22 Nm (16 lb-ft)





2. Support the door.

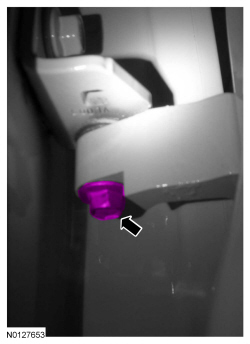

3. Remove the lower door hinge pivot bolt.
- 30 Nm (22 lb-ft)





4. Remove the upper door hinge pivot bolt.
- 30 Nm (22 lb-ft)





5. Position the door slightly away from the vehicle.

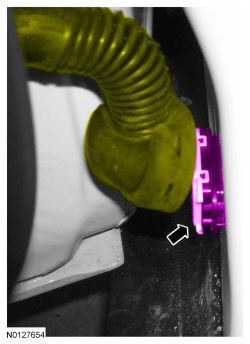

6. Position aside the wiring harness boot and disconnect the door wiring harness electrical connector.





7. Remove the door.

Installation

1. To install, reverse the removal procedure.

2. If necessary, align the door to specification. REFER to Door Alignment - Rear .
