Diagnostic Routine AM

Diagnostic Routine AM

Diagnostic Overview

U3006:13

Refer to Wiring Diagram Set 13 for schematic and connector information Electrical Diagrams.

Normal Operation and Fault Conditions

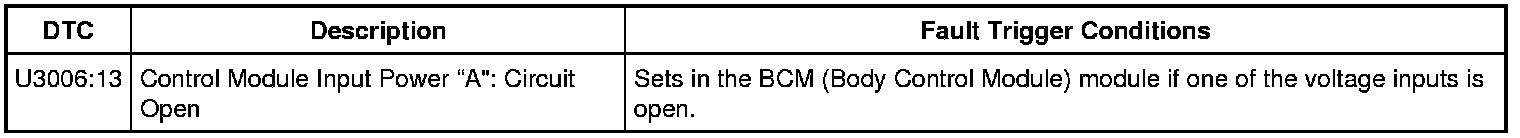

DTC Fault Trigger Conditions





Pinpoint Test

1. CHECK THE BCM (Body Control Module) VOLTAGE SUPPLY

1. Ignition OFF.

2. Disconnect: BCM (Body Control Module) C2280G.

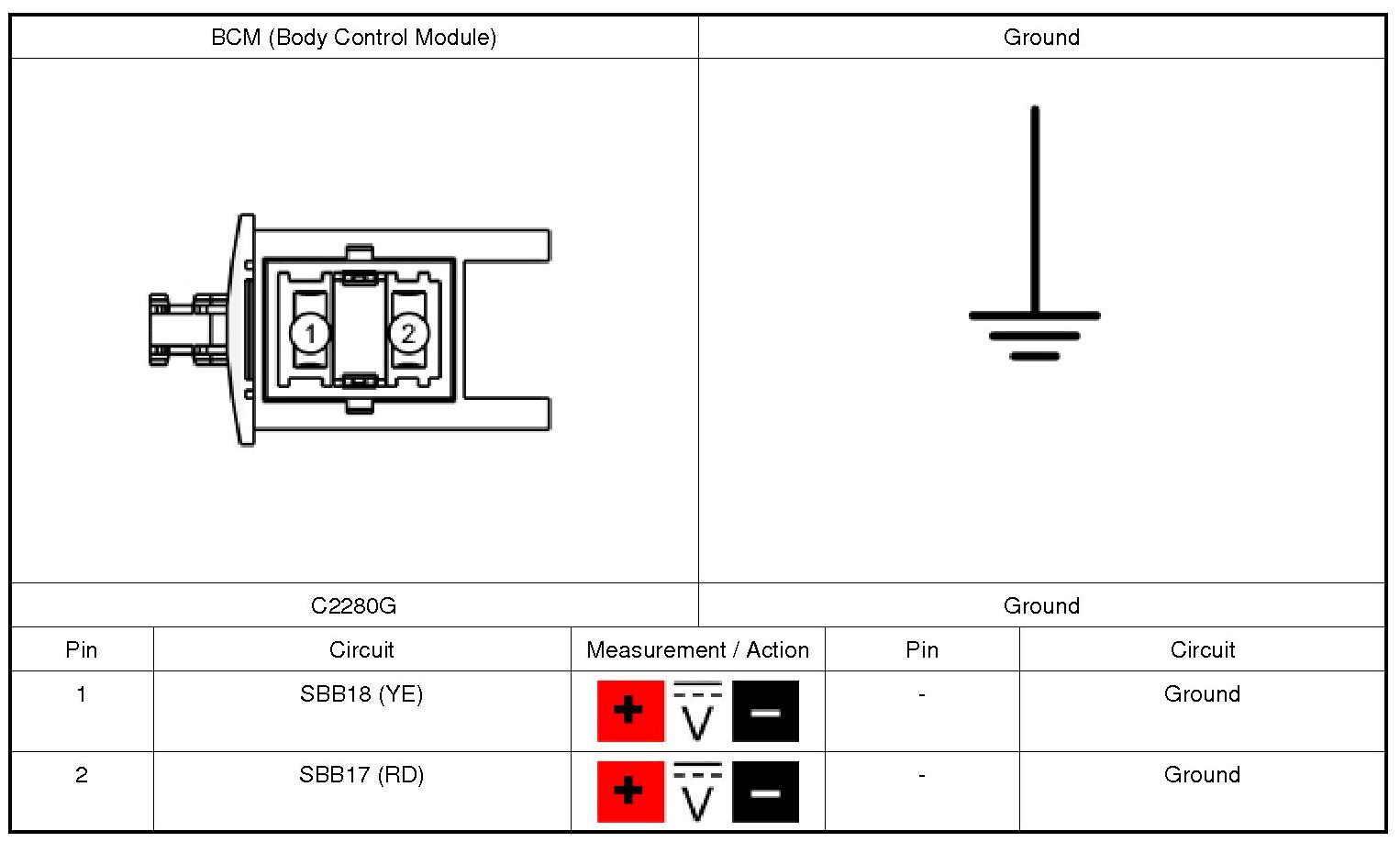

3. Measure:





Are the voltages greater than 11 volts?






2. CHECK FOR CORRECT BCM (Body Control Module) OPERATION

1. Ignition OFF.

2. Disconnect and inspect all BCM (Body Control Module) connectors.

3. Repair:

- corrosion (install new connector or terminals- clean module pins)
- damaged or bent pins - install new terminals/pins
- pushed-out pins - install new pins as necessary

4. Connect the BCM (Body Control Module) connectors. Make sure they seat and latch correctly.

5. Operate the system and determine if the concern is still present.

Is the concern still present?
