Information and Entertainment Systems - Premium




Speaker - Door

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Exploded View

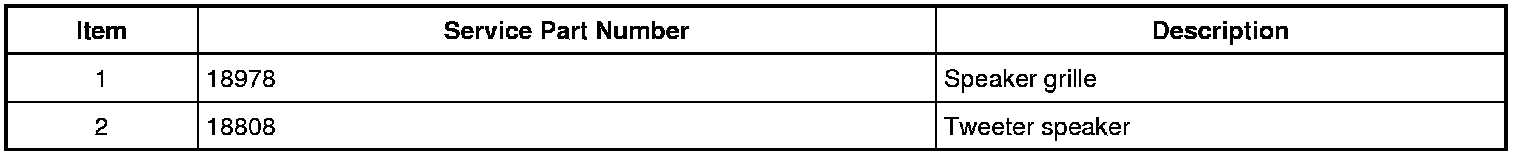

NOTE: Front Door Tweeter









NOTE: Front or Rear Door










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Front door tweeter.





2. For front and rear door speaker removal, remove the door panel. REFER to Door Trim Panel - Front or REFER to Door Trim Panel - Rear .
- 2 Nm (18 lb-in)





3. For rear door tweeter removal, remove the rear door trim panel. REFER to Door Trim Panel - Rear .





Installation

1. To install, reverse the removal procedure.
