Video Camera

Video Camera

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

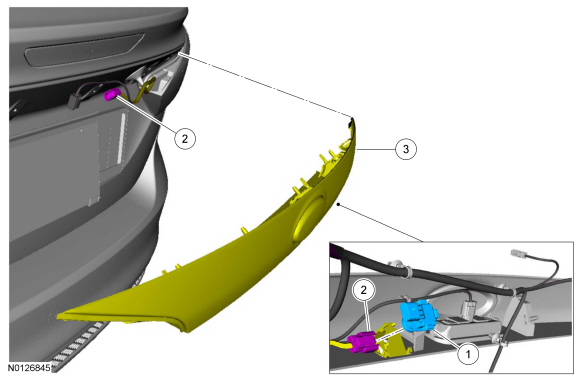

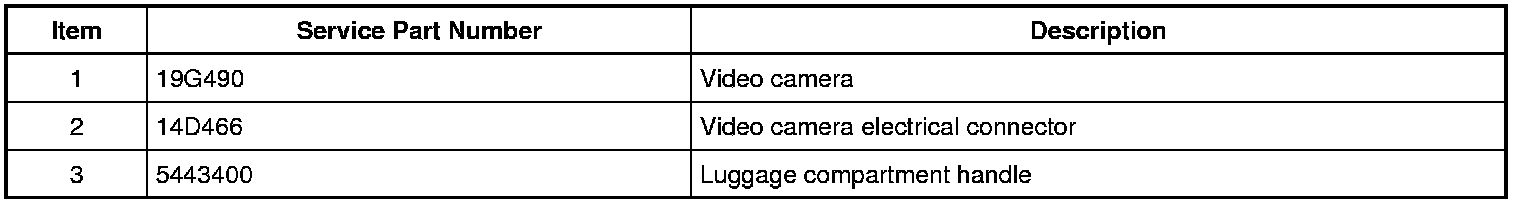

Exploded View










Removal

1. For 4 door vehicles, remove the luggage compartment release handle. REFER to Luggage Compartment Release Handle . For 5 door vehicles, remove the liftgate release handle. REFER to Liftgate Release Handle

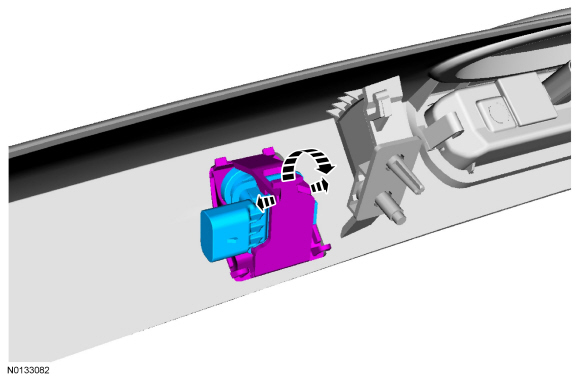

2. NOTE: Four door vehicle shown, 5 door similar.






Installation

1. To install, reverse the removal procedure.

2. Verify camera operation. If the displayed image is inverted, place the ignition ON and leave on for 5 minutes to allow the IPM-B (Image Processing Module - B) to configure the camera.
