Image Processing Module B (IPM-B)

Image Processing Module B (IPM-B)

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

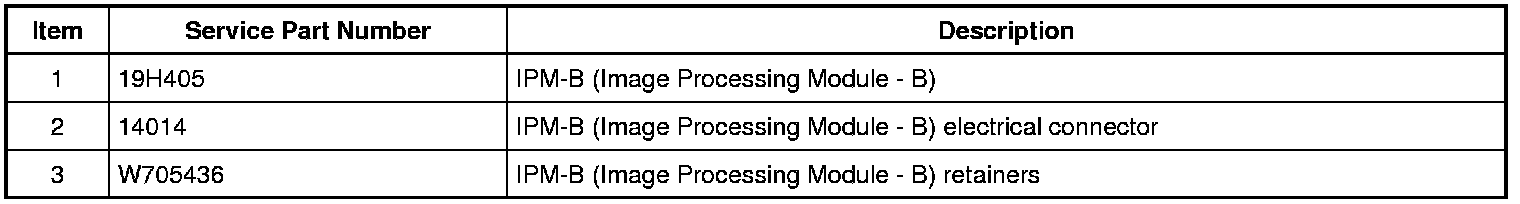

Exploded View










Removal

1. NOTE: Module configuration is required when a new IPM-B (Image Processing Module - B) is being installed.

If a new module is being installed, upload the module configuration information from the IPM-B (Image Processing Module - B) into the scan tool by following the instructions on the scan tool.

2. If equipped, remove the subwoofer. REFER to Speaker - Subwoofer .

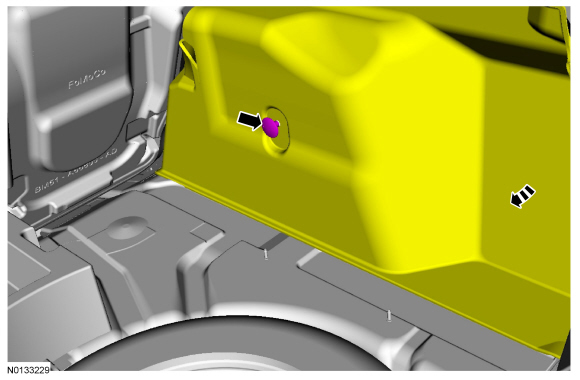

3. Five door vehicles.





4.





5.





6. NOTE: Four door vehicle shown, 5 door similar.

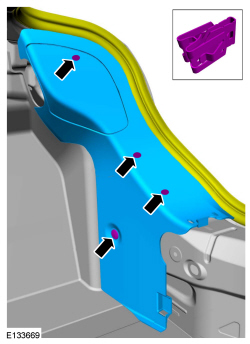

7. For 5 door vehicles, remove the upper C-pillar trim panel. REFER to C-Pillar Trim Panel - Upper. C-Pillar Trim Panel - Upper

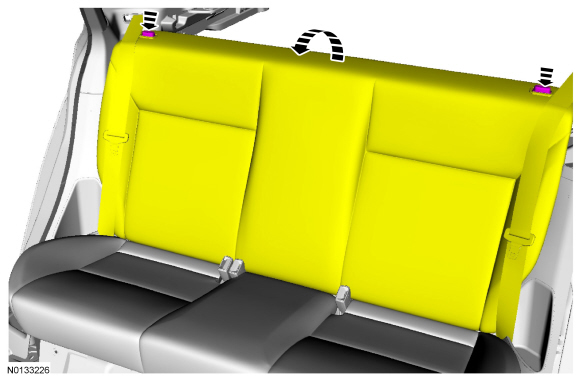

8. Five door vehicles with full bench rear seat.





9. Five door vehicles with 60/40 rear seat.

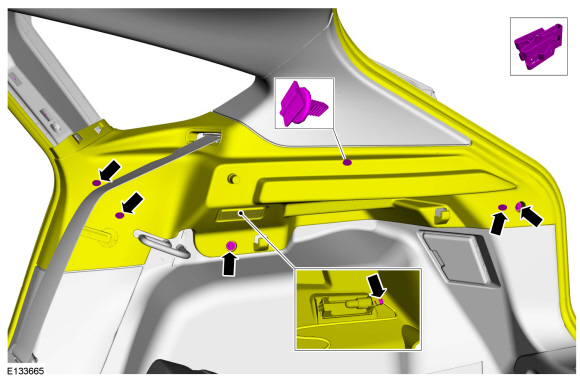

10. Five door vehicles.





11. Five door vehicles.

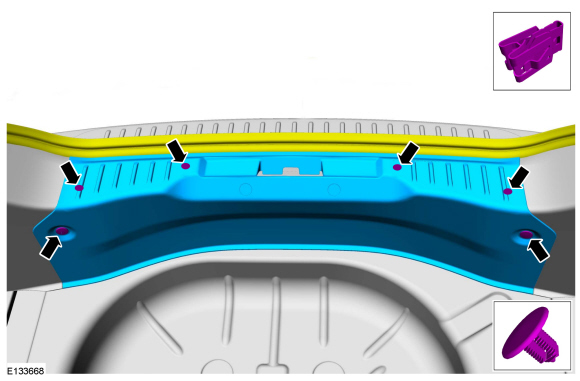

12. Four door vehicles.





13. Four door vehicles.

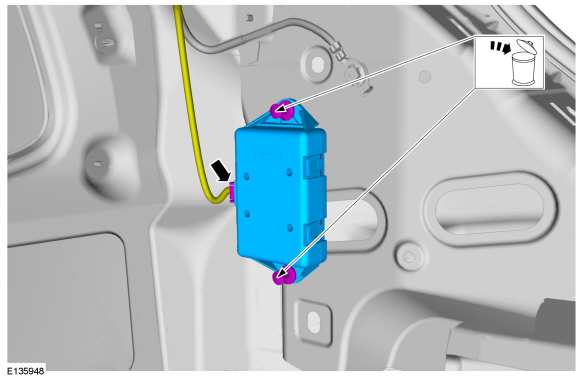

14. NOTE: Four door vehicle shown, 5 door similar.






Installation

1. To install, reverse the removal procedure.

2. If a new module has been installed, download the IPM-B (Image Processing Module - B) configuration information from the scan tool to the new IPM-B (Image Processing Module - B).
