Passive Start Antenna - Rear

Passive Start Antenna - Rear

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

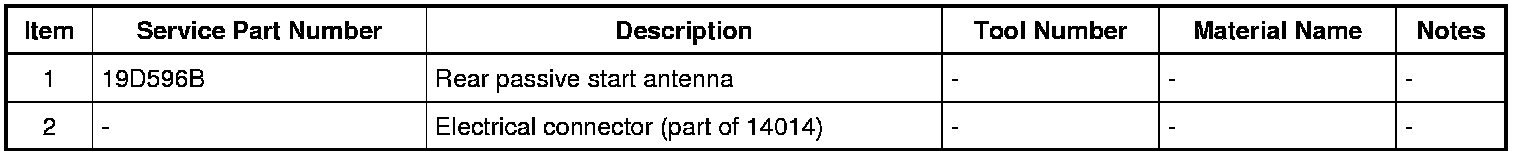

Exploded View

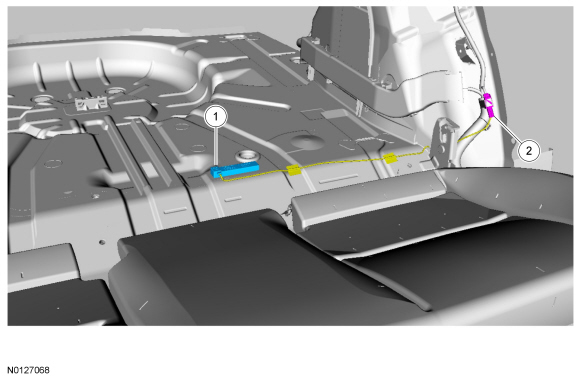

4 Door Sedan

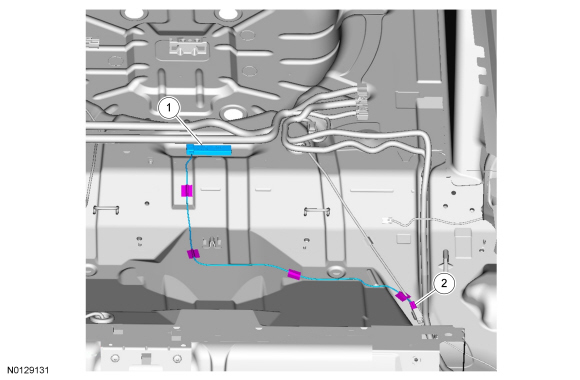

5 Door Hatchback










Removal

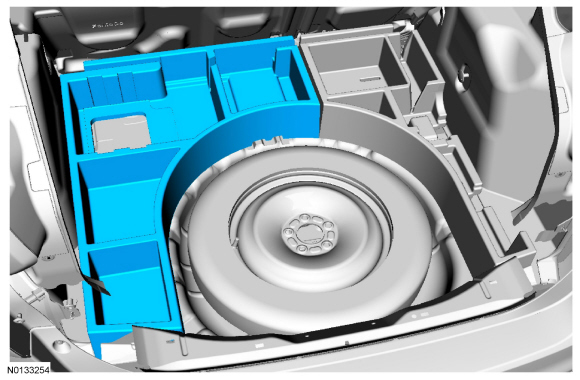

1. Five door vehicles.





2.

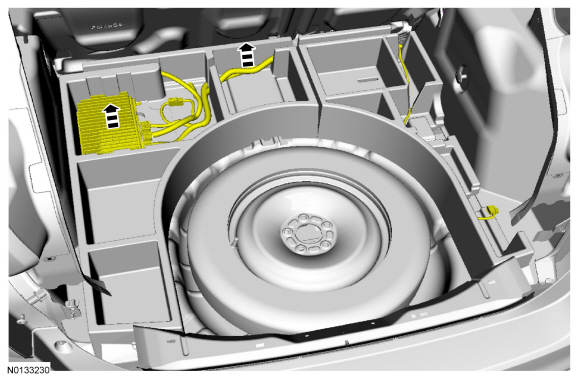

3. Vehicles equipped with a power amplifier.





4.





5. Remove the LH (Left Hand) middle C-pillar trim panel. REFER to C-Pillar Trim Panel - Middle, 4-Door Sedan or REFER to C-Pillar Trim Panel - Middle, 5-Door Hatchback .

6. Remove the LH (Left Hand) lower C-pillar trim panel. REFER to C-Pillar Trim Panel - Lower .

7. Remove the seat backrest. REFER to Seat Backrest .

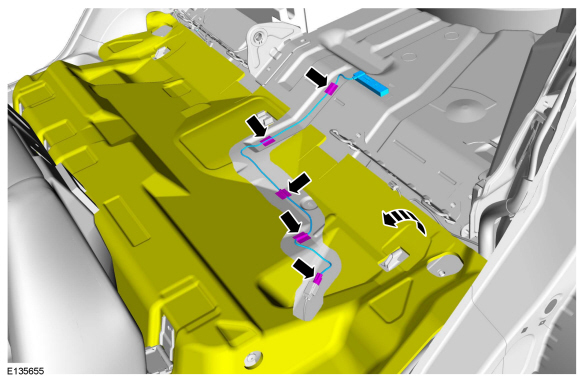

8. NOTE: Four door vehicle shown, 5 door similar.






Installation

1. To install, reverse the removal procedure.
