Passive Start Antenna - Front

Passive Start Antenna - Front

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

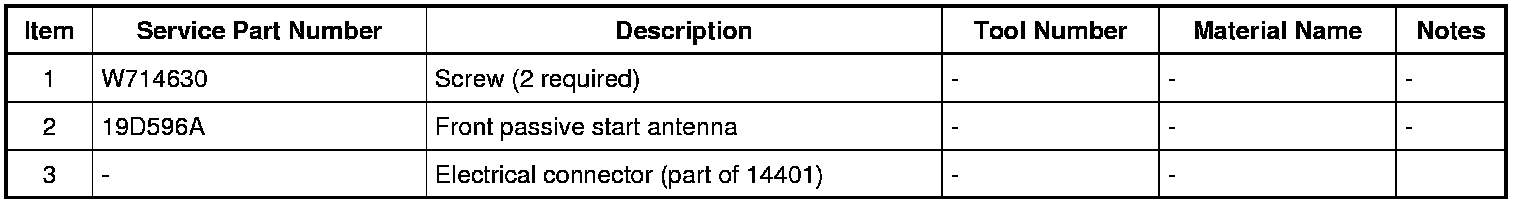

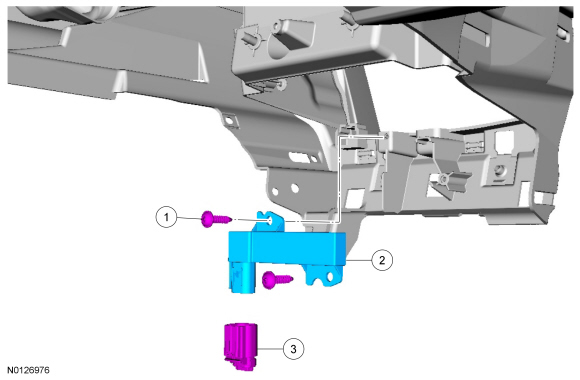

Exploded View










Removal

1. Remove the HVAC (Heating, Ventilation, and Air Conditioning) module. For vehicles equipped with EMTC (Electronic Manual Temperature Control), REFER to Heating Ventilation Air Conditioning (HVAC) Module . For vehicles equipped with DATC (Dual Automatic Temperature Control), REFER to Heating Ventilation Air Conditioning (HVAC) Module .

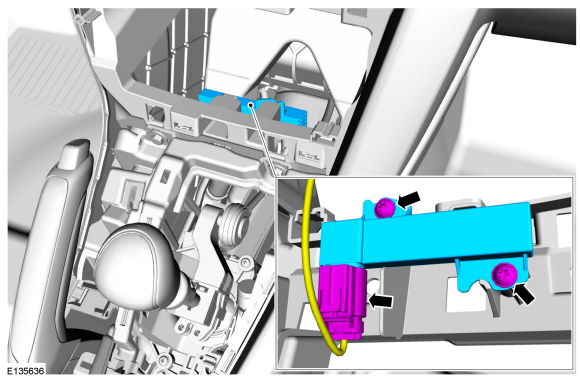

2.





Installation

1. To install, reverse the removal procedure.
