Passive Start Antenna - Center

Passive Start Antenna - Center

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

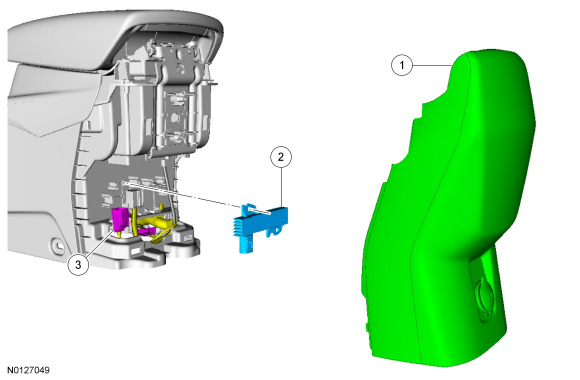

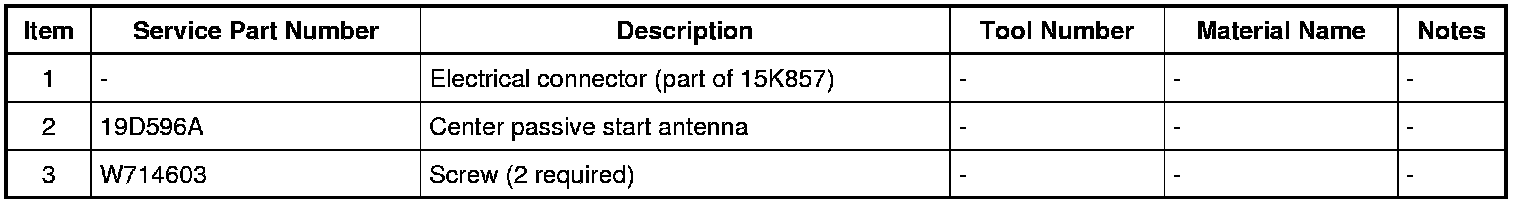

Exploded View

- Cubby Box Floor Console









- Closed Bin Floor Console










Removal

1. For cubby box floor consoles, remove the front floor console. REFER to Console - Front, Floor . For closed bin floor console, remove the media hub. REFER to Media Hub .

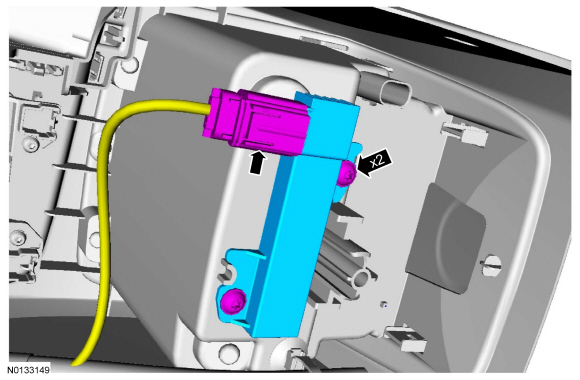

2. Vehicles with closed bin front console.

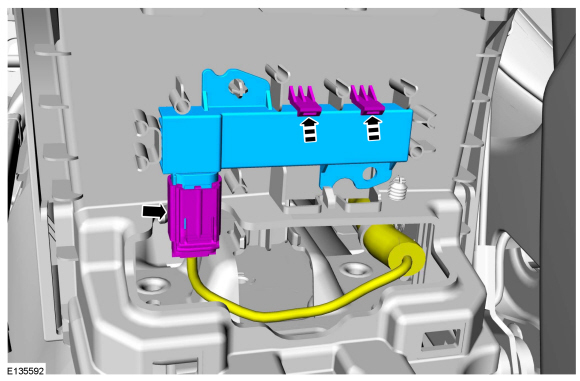

3. Vehicles with cubby box front console.





Installation

1. To install, reverse the removal procedure.
