Wiper Motor - Windshield

Wiper Motor - Windshield

Removal and Installation

1. Remove the wiper mounting arm and pivot shaft. For additional information, refer to Wiper Mounting Arm and Pivot Shaft Wiper Mounting Arm and Pivot Shaft.

2. NOTE: Note the position of the component before removal.

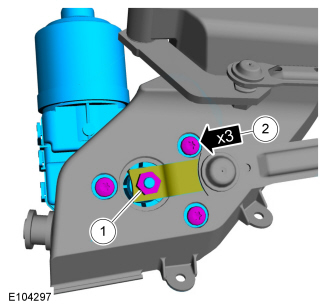

Remove the windshield wiper motor.

1. Remove the windshield wiper pivot arm nut.
- To install, tighten to 15 Nm (133 lb-in).

2. Remove the 3 windshield wiper motor bolts.
- To install, tighten to 9 Nm (80 lb-in).





3. To install, reverse the removal procedure.
