Transaxle Support Insulator

Transaxle Support Insulator





Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the battery.

3. Remove the cowl assembly.

4. Remove the Air Cleaner (ACL) assembly and outlet pipe.

5. Remove the PCM cover bolt and the PCM cover.





6. Disconnect the 3 PCM electrical connectors.





7. Remove the 3 battery tray bolts and the battery tray.





8. Using a suitable tool, detach the wiring harness from the battery tray bracket.





9. Remove the 3 battery tray bracket nuts and remove the battery tray bracket.

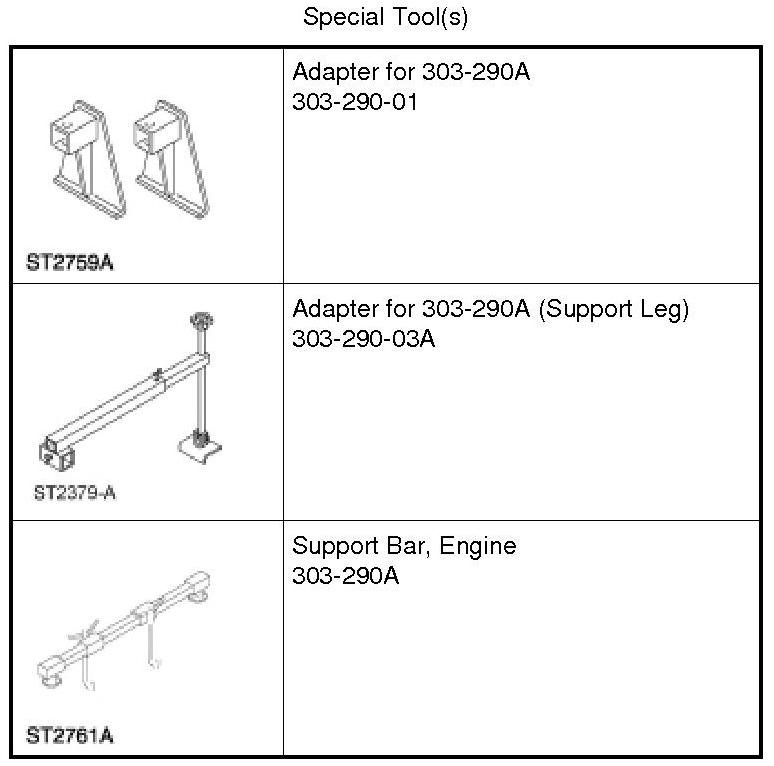

10. Install the special tools and support the engine.





11. Remove the 2 transaxle support insulator bolts and nuts and remove the transaxle support insulator.





Installation

1. Install the transaxle support insulator and install the 2 transaxle support insulator bolts and the 2 nuts.
- Tighten the 2 bolts to 90 Nm (66 lb-ft).

- Tighten the 2 nuts to 125 Nm (92 lb-ft).






2. Install the battery tray bracket and the 3 battery tray bracket nuts.
- Tighten to 25 Nm (18 lb-ft).






3. Attach the wiring harness to the battery tray bracket.





4. Install the battery tray and 3 battery tray bolts.
- Tighten to 10 Nm (89 lb-in).






5. Connect the 3 PCM electrical connectors.





6. Install the PCM cover and the PCM cover bolt.
- Tighten to 6 Nm (53 lb-in).






7. Install the ACL (Air Cleaner) and the outlet pipe.

8. Install the cowl assembly.

9. Install the battery.
